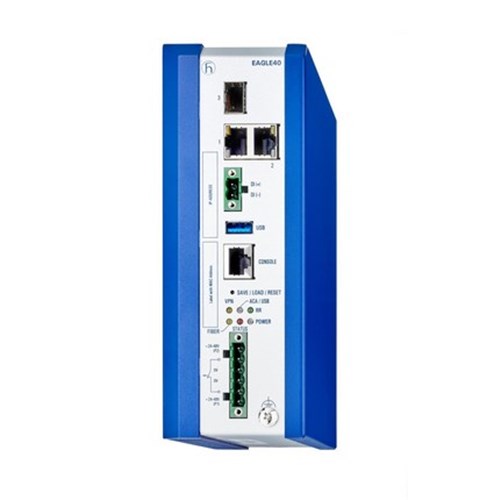

Product Code: 942 300-006

Industrial router with DIN rail mounting
Operates on 24/36/48 VDC, 15 W power
IP20 protection for secure use
Supports wide temp range: -40 to 70°C
Equipped with (2) TX and (1) SFP ports

Specifications

General

Product Type

Firewall

Brand

Hirschmann

Series

EAGLE40

Electrical

Rated Power

max. 15W

Rated Voltage (Ur)

Dual 20 ~ 54V DC

Mechanical

Material

Rugged high-strength sheet metal

Mounting

DIN rail

Port Configuration

3 ports in total; 2 x Gigabit Ethernet RJ45 LAN +, 1 x Gigabit Ethernet SFP WAN

Dimensions & Physical Data

Depth 135.8mm	Height 187.2mm	Weight 1.96kg
Width 70mm

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

-40°C to 70°C

IP Rating

IP20

Communication & Control

USB Port

1 x USB 3.0 socket to connect an approved USB storage device

Encryption

TPM 2.0 (Trusted Platform Module)*

Safety, Standards & Compliance

Standards and Approvals

CE, FCC, EN 61131 UL 62368-1

Accessories & Additional Information

Development Software

HiSecOS 05.2.00

Hirschmann 942 300-006 Industrial Firewall With Stateful Packet Inspection (2) TX (1) SFP 24/36/48VDC
