Product Code: 942 300-005

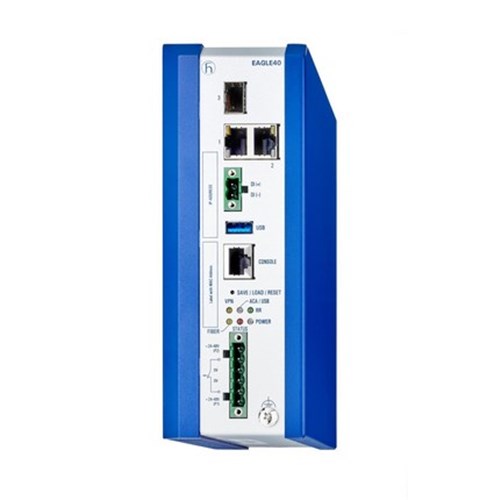

Industrial router with 3 TX ports
Operates at -40 to 70°C for harsh conditions
DIN Rail mounting for easy installation
IP20 protection rating
CE, FCC, EN61131 certified

Specifications

General

Product Type

Firewall

Brand

Hirschmann

Series

EAGLE40

Electrical

Rated Power

max. 15W

Rated Voltage (Ur)

Dual 20 ~ 54V DC

Mechanical

Material

Rugged high-strength sheet metal

Mounting

DIN rail

Port Configuration

3 ports in total; 2 x Gigabit Ethernet RJ45 LAN +, 1 x Gigabit Ethernet RJ45 WAN

Dimensions & Physical Data

Depth 135.8mm	Height 187.2mm	Weight 1.96kg
Width 70mm

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

-40°C to 70°C

IP Rating

IP20

Communication & Control

USB Port

1 x USB 3.0 socket to connect an approved USB storage device

Encryption

TPM 2.0 (Trusted Platform Module)*

Safety, Standards & Compliance

Standards and Approvals

CE, FCC, EN 61131 UL 62368-1

Accessories & Additional Information

Development Software

HiSecOS 05.2.00

Hirschmann 942 300-005 Industrial Firewall W/Stateful Packet Inspection (3) TX -Port 24/36/48VDC -40 to 85 deg C
