Product Code: 942 300-004

Industrial router for reliable connectivity
Supports 24/36/48 VDC power supply
Compact DIN rail mounting design
Operates in -40 to 70°C temperature range
IP20 protection with CE, FCC approvals

Specifications

General

Product Type

Firewall

Brand

Hirschmann

Series

Eagle 40

Electrical

Rated Power

max. 15 W

Rated Voltage

Dual 20 ~ 54 V DC

Mechanical

Material

Rugged high-strength sheet metal

Mounting Type

DIN rail

Dimensions & Physical Data

Depth 135.8 mm	Height 187.2 mm	Weight 1960 g
Width 70 mm

Environmental

Storage Temperature

-40-+85 °C

Operating Temperature

-40-+70 °C

IP Rating

IP20

Communication & Control

Port Type

3 ports in total; 2 x Gigabit Ethernet RJ45 LAN +, 1 x Gigabit Ethernet SFP WAN

USB Port

1 x USB 3.0 socket to connect an approved USB storage device

Encryption

TPM 2.0 (Trusted Platform Module)*

Safety, Standards & Compliance

Standards and Approvals

CE, FCC, EN 61131 UL 62368-1

Accessories & Additional Information

Development Software

HiSecOS 05.2.00

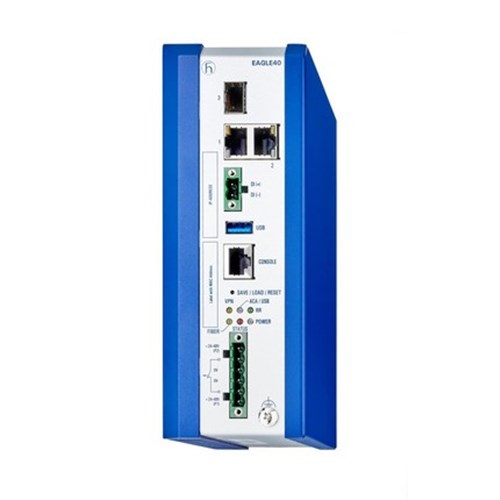

Hirschmann 942 300-004 Industrial Firewall With Stateful Packet Inspection (2) TX (1) SFP 24/36/48VDC
