Product Code: 942 300-001

Industrial router with 15W power rating
Supports 24/36/48 VDC input voltage
DIN rail mounting for easy installation
IP20 protection for indoor environments
Operates in temperatures from 0 to 60°C

Specifications

General

Product Type

Firewall

Brand

Hirschmann

Series

Eagle 40

Electrical

Rated Power

max. 15 W

Rated Voltage

Dual 20 ~ 54 V DC

Mechanical

Material

Rugged high-strength sheet metal

Mounting Type

DIN rail

Dimensions & Physical Data

Depth 135.8 mm	Height 187.2 mm	Weight 1960 g
Width 70 mm

Environmental

Storage Temperature

-40-+85 °C

Operating Temperature

0-+60 °C

IP Rating

IP20

Communication & Control

Port Type

3 ports in total; 2 x Gigabit Ethernet RJ45 LAN +, 1 x Gigabit Ethernet RJ45 WAN

USB Port

1 x USB 3.0 socket to connect an approved USB storage device

Encryption

TPM 2.0 (Trusted Platform Module)*

Safety, Standards & Compliance

Standards and Approvals

CE, FCC, EN 61131 UL 62368-1

Accessories & Additional Information

Development Software

HiSecOS 05.2.00

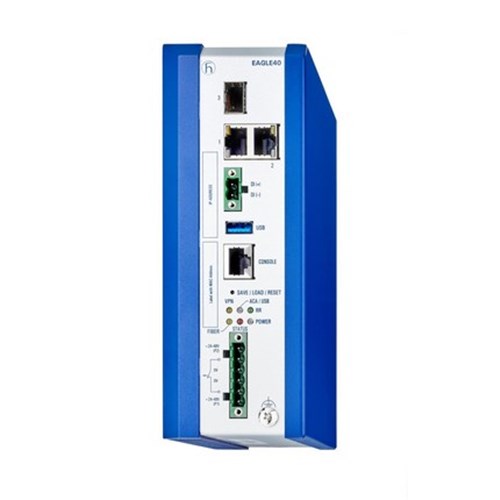

Hirschmann 942 300-001 Industrial Firewall W/Stateful Packet Inspection (3) TX -Port 24/36/48VDC -40 to 85 deg C
