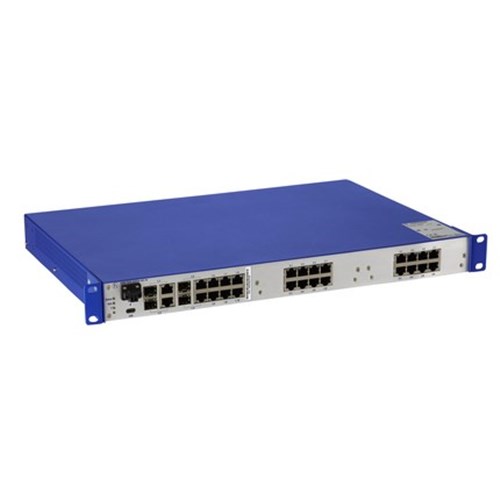

Product Code: 942 298-007

Managed type for efficient control
Fits 19 in control cabinets
Wide voltage range: 100-240 VAC
Operates in -10 to 60°C conditions
CE, FCC, EN61131 certified

Specifications

General

Product Type

Rack Mount Managed Fast Ethernet Switch

Brand

Hirschmann

Series

GREYHOUND 103

Electrical

Electrical Connection

2 x IEC plug / 1 x plug-in terminal block, 2-pin, output manual or automatic switchable (max. 1 A, 24 V DC bzw. 24 V AC)

Rated Power

expected max 17W

Rated Voltage (Ur)

100 - 240 VAC, 47 - 63 Hz (redundant)

Mechanical

Mounting

19" control cabinet

Port Configuration

26 Ports in total, 4 x FE/GE TX/SFP , 22 x FE TX

Dimensions & Physical Data

Depth 310mm	Height 44mm	Weight approx 4.10kg
Width 448mm

Environmental

Storage Temperature

-20°C to 70°C

Operating Temperature

-10°C to 60°C

IP Rating

IP20

Communication & Control

Traffic Management

Independent VLAN Learning, Fast Aging, Static Unicast/Multicast Address Entries, QoS / Port Prioritization (802.1D/p), TOS/DSCP Prioritization, Interface Trust Mode, CoS Queue Management, Flow Control (802.3X), Egress Interface Shaping, Ingress Storm Protection, VLAN (802.1Q), VLAN Unaware Mode, GARP VLAN Registration Protocol (GVRP), Voice VLAN, GARP Multicast Registration Protocol (GMRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Unknown Multicast Filtering, Forward unknown multicast to query ports, Multiple VLAN Registration Protocol (MVRP), Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP)

Network Management

Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, HTTP, HTTPS, IPv6 Management, Traps, SNMP v1/v2/v3, SNMPv3 Traps, Telnet

Safety, Standards & Compliance

Standards and Approvals

CE, FCC, EN 61131 EN 50121-4 IEC 62443-4-2 Security Level 2

Hirschmann 942 298-007 Rack Mount Managed Fast Ethernet Switch 19 in Control Cabinet Mount 100-240VAC

Product Code: 942 298-007
