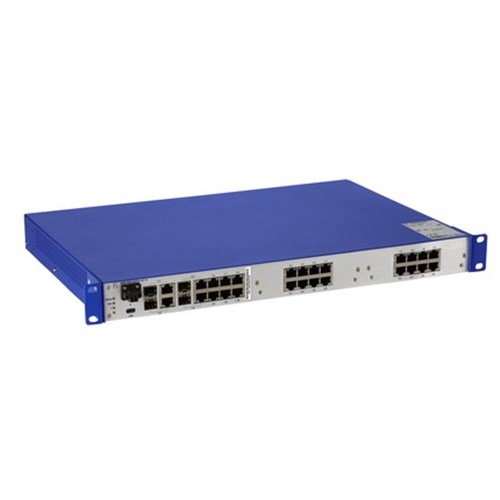

Hirschmann 942 298-006 Rack Mount Managed Fast Ethernet Switch 19 in Control Cabinet Mount 100-240VAC

Managed Ethernet Switch

Hirschmann

GREYHOUND 103

1 x IEC plug / 1 x plug-in terminal block, 2-pin, output manual or automatic switchable (max. 1 A, 24 V DC bzw. 24 V AC)

expected max 16W

100 - 240 VAC, 47 - 63 Hz

19" control cabinet

26 Ports in total, 4 x FE/GE TX/SFP , 22 x FE TX

310mm

44mm

approx 3.85kg

448mm

-20°C to 70°C

-10°C to 60°C

IP20

Independent VLAN Learning, Fast Aging, Static Unicast/Multicast Address Entries, QoS / Port Prioritization (802.1D/p), TOS/DSCP Prioritization, Interface Trust Mode, CoS Queue Management, Flow Control (802.3X), Egress Interface Shaping, Ingress Storm Protection, VLAN (802.1Q), VLAN Unaware Mode, GARP VLAN Registration Protocol (GVRP), Voice VLAN, GARP Multicast Registration Protocol (GMRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Unknown Multicast Filtering, Forward unknown multicast to query ports, Multiple VLAN Registration Protocol (MVRP), Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP)

DNS Client, Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, OPC-UA Server, HTTP, HTTPS, IPv6 Management, Service Discovery (bonjour), ITxPT Module Inventory, Traps, SNMPv1/v2 Read-Only, SNMP v1/v2/v3, SNMPv3 Traps, Telnet

CE, FCC, EN 61131 EN 50121-4 IEC 62443-4-2 Security Level 2
