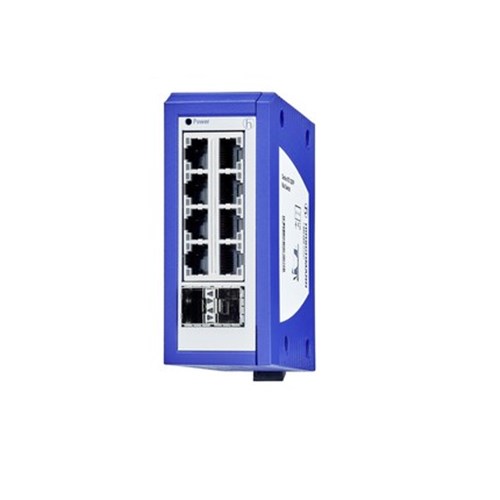

Hirschmann 942 291-302 Ethernet Switch 18-32VDC

Product Code: 942 291-302

  • Managed unit with DIN rail mounting
  • Operates at 5.3W, 18-32 VDC
  • Compact design: 45.4mm W x 110mm H x 82mm D
  • Wide temp range: -40 to 60°C operational
  • Humidity tolerance from 5% to 95%
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ethernet Switch
Brand
Hirschmann
Series
Gecko

Electrical

Input Voltage
18V DC ... 32V DC

Mechanical

Mounting
DIN rail

Dimensions & Physical Data

Depth
82mm
Height
110mm
Weight
0.223kg
Width
45.4mm

Environmental

Operating Temperature
-40°C to 60°C
IP Rating
IP30

Communication & Control

Connectors/Input/Output
8 x 10BASE-T/100BASE-TX, TP-cable, RJ45-sockets, auto-crossing, auto-negotiation, auto-polarity, 2 x 100/1000 MBit/s SFP
Total Ports
8
Traffic Management
TOS/DSCP Prioritization, QoS (4 queues), Static unicast/multicast filter entries (up to 100), Flow Control (802.3X), VLAN Support
Network Management
HTML5 Web-Interface, TFTP config file/firmware transfer, SNMP V1/V2/V3

Safety, Standards & Compliance

Standards and Approvals
cUL 61010-1
