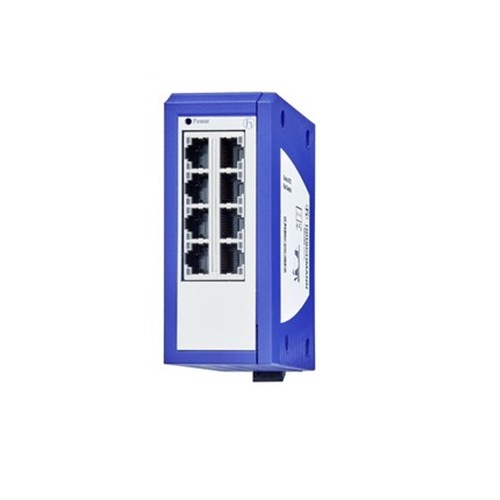

Hirschmann 942 291-301 Ethernet Switch 18-32VDC

Product Code: 942 291-301

  • Efficient 3.9 W power consumption
  • Operates on 18-32 VDC voltage range
  • Compact DIN rail mounting design
  • Wide temp range: -40 to 60°C operational
  • Humidity tolerance from 5% to 95%
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Ethernet Switch
Brand
Hirschmann
Series
Gecko

Electrical

Input Voltage
18V DC ... 32V DC

Mechanical

Mounting
DIN rail

Dimensions & Physical Data

Depth
82mm
Height
110mm
Weight
0.223kg
Width
45.4mm

Environmental

Operating Temperature
-40°C to 60°C
IP Rating
IP30

Communication & Control

Connectors/Input/Output
8 x 10BASE-T/100BASE-TX, TP-cable, RJ45-sockets, auto-crossing, auto-negotiation, auto-polarity
Total Ports
8
Traffic Management
TOS/DSCP Prioritization, QoS (4 queues), Static unicast/multicast filter entries (up to 100), Flow Control (802.3X), VLAN Support
Network Management
HTML5 Web-Interface, TFTP config file/firmware transfer, SNMP V1/V2/V3

Safety, Standards & Compliance

Standards and Approvals
cUL 61010-1
