Specifications

Product Type

Ethernet Switch

Brand

HIRSCHMANN

Series

GECKO

Operating Voltage 18 - 32 V DC	Power Consumption 5.3 W	No. of Ports 10
Redundancy Protocols RSTP (IEEE 802.1D-2004), MRP Client	Configuration BOOTP/DHCP, HiDiscovery

Cable Length (Supported Range) 0 – 100 m (Twisted Pair )	Cable Type Twisted Pair	Diagnostic Functions Device status indication (LEDs), Log-File, RMON (1) statistics, Simple interface statistics, Topology Discovery according to IEEE 802.1AB, (LLDP), Syslog
Industrial Protocols PROFINET	Model GECKO 8TX/2SFP	Mounting Type DIN rail
Port Configuration 8 × Copper (RJ45) + 2 × Fiber (SFP)	VLAN Support Yes

Depth 79 mm	Height 102 mm	Weight 223 g
Width 38 mm

Storage Temperature

-40 - +85 °C

Operating Temperature

-40 - +60 °C

IP Rating

IP30

Standards and Approvals

cUL 61010-1

Security Features

SNMPv3 (authNoPriv), SSH, SSL, and the ability to disable individual ports

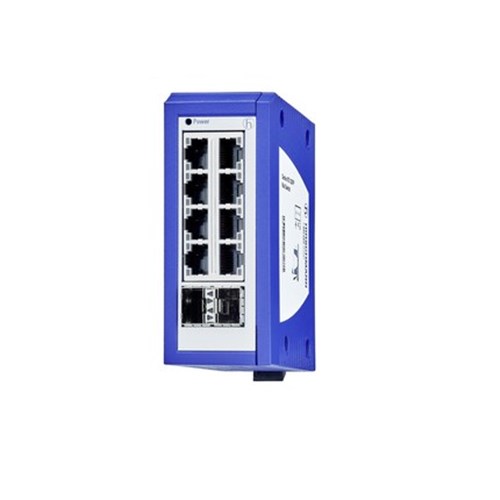

Hirschmann 942 291-002 Ethernet Switch 18-32VDC
