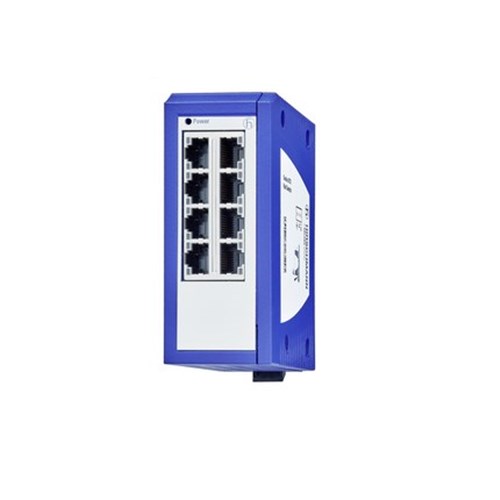

Hirschmann 942 291-001 Ethernet Switch 18-32VDC

Product Code: 942 291-001

  • Managed type with 3.9 W rated power.
  • Operates on 18-32 VDC voltage.
  • DIN Rail mounting for easy installation.
  • Compact size: 45.4 mm width, 110 mm height, 82 mm depth.
  • IP30 protection against dust and particles.
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch
Brand
Hirschmann
Series
Gecko

Electrical

Input Voltage
18 V DC ... 32 V DC
Redundancy
RSTP (IEEE 802.1D-2004), MRP Client

Mechanical

Mounting
DIN Rail

Dimensions & Physical Data

Depth
82 mm
Height
110 mm
Weight
0.223 Kg
Width
45.4 mm

Environmental

Operating Temperature
-40-+60 °C
IP Rating
IP30

Communication & Control

Connectors/Input/Output
8 x 10BASE-T/100BASE-TX, TP-cable, RJ45-sockets, auto-crossing, auto-negotiation, auto-polarity
Total Ports
8
Traffic Management
TOS/DSCP Prioritization, QoS (4 queues), Static unicast/multicast filter entries (up to 100), Flow Control (802.3X), VLAN Support
Network Management
HTML5 Web-Interface, TFTP config file/firmware transfer, SNMP V1/V2/V3

Safety, Standards & Compliance

Standards and Approvals
cUL 61010-1
