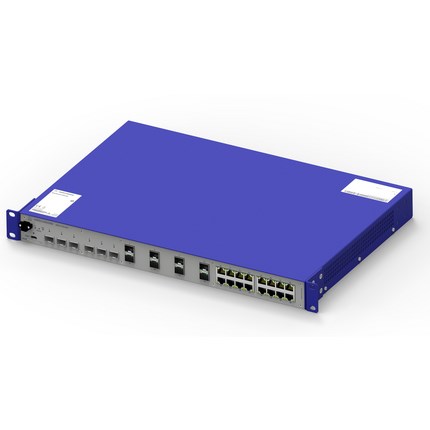

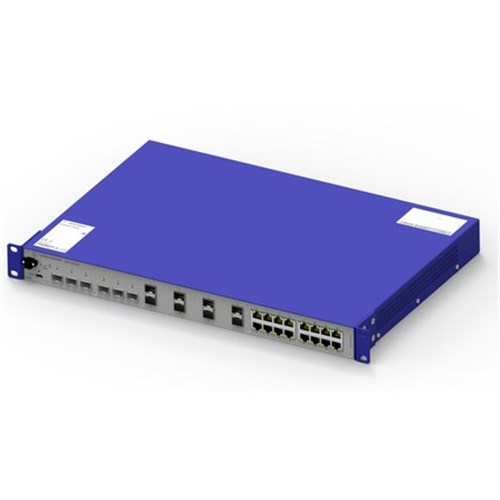

Hirschmann 942 287-999-011 Rack Mount Managed Ethernet Switch

Industrial Ethernet Switch

Hirschmann

GREYHOUND 105

Power supply input 1: 2 pin plug-in terminal block, Signal contact: 2 pin plug-in terminal block , Power supply input 2: 2 pin plug-in terminal block

31W

Power supply input 1: 24 - 48 VDC , Power supply input 2: 24 - 48 VDC

Rack mount

30 Ports in total, 6x GE/2.5GE SFP slot + 8x FE/GE TX ports + 16x FE/GE TX ports

310mm

44mm

5kg estimated

444mm

-10°C to 60°C

-20°C to 70°C

-10°C to 60°C

IP30

CoS Queue Management, Double VLAN Tagging (QinQ), Egress Interface Shaping, Fast Aging, Flow Control (802.3X), Forward unknown multicast to query ports, GARP Multicast Registration Protocol (GMRP), GARP VLAN Registration Protocol (GVRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, IP Egress DiffServ Classification and Policing, IP Ingress DiffServ Classification and Policing, IP subnet-based VLAN, Jumbo Frames, MAC-based VLAN, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), Protocol-based VLAN, QoS / Port Prioritization (802.1D/p), Queue-Shaping / Max. Queue Bandwidth, Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, Unknown Multicast Filtering, VLAN (802.1Q), VLAN Unaware Mode, Voice VLAN

DNS Client, Dual Software Image Support, HTTP, HTTPS, IPv6 Management, ITxPT Module Inventory, LLDP (802.1AB), LLDP-MED, OPC-UA Server, SCP, Service Discovery (bonjour), SFTP, SNMP v1/v2/v3, SNMPv1/v2 Read-Only, SNMPv3 Traps, SSHv2, Telnet, TFTP, Traps

CE, FCC, EN 61131 EN 62368, cUL62368 IEC 62443-4-2 Security Level 2
