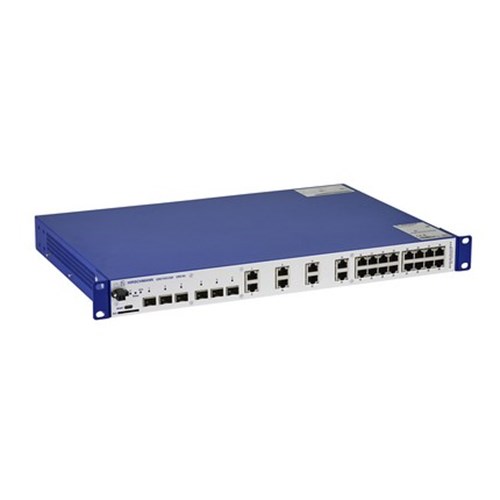

Hirschmann 942 287-002 Managed Ethernet Switch Rack Mount 110-240VAC

Product Code: 942 287-002

  • Managed switch for reliable network control
  • Versatile rack mounting design
  • Wide voltage range: 110-240 VAC
  • Robust IP20 protection rating
  • Operates in -10 to 60°C environments
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Switch
Brand
HIRSCHMANN

Electrical

Operating Voltage
Power supply input 1: 110 - 240 VAC, 50 Hz - 60 Hz , Power supply input 2: 110 - 240 VAC, 50 Hz - 60 Hz
Power Consumption
31 W
No. of Ports
6 x GE/2.5GE SFP + 8 x FE/GE TX + 16 x FE/GE TX
Network Size (Length of Cable)
0-100 m (Twisted pair)
Network Cable Type
Twisted pair, Single mode fiber(SM) 9/125 µm, Single mode fiber(LH) 9/125 µm, Multimode fiber (MM)50/125 µm, Multimode fiber (MM)62.5/125 µm

Mechanical

Mounting Type
Rack mount
SD-Card Slot
1 x SD card

Dimensions & Physical Data

Depth
310 mm
Height
44 mm
Weight
5 kg
Width
444 mm

Environmental

Storage Temperature
-20 to +70 °C
Operating Temperature
-10 to +60 °C
IP Rating
IP30

Communication & Control

USB Port
1 x USB

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, EN61131, EN62368, cUL62368, IEC 62443-4-2 Security Level 2

Documents

IPD Product Catalogue V17
