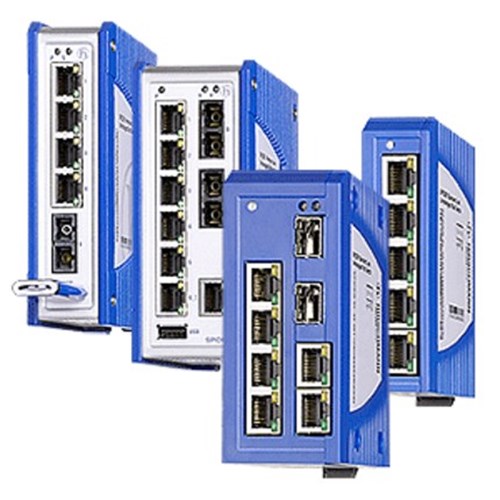

Hirschmann 942 274-007 Ethernet Switch 4 1 57VDC 134.2 W DIN Rail Wall Mount

Product Code: 942 274-007

  • Compact design for DIN Rail/Wall mounting
  • IP30 rating ensures basic protection
  • Operates at 57 VDC with 134.2 W power
  • Suitable for industrial applications
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ethernet Switch
Brand
Hirschmann
Series
Spider III

Electrical

Rated Power
Max. 134.2W with 120W PoE output
Rated Voltage (Ur)
24/48V DC (12 - 57V DC / 12 - 18V DC, derating output)

Mechanical

Mounting
DIN rail
Port Configuration
4 x 10/100BASE-TX, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity , thereof 4x PoE+ ports , 1 x 100BASE-FX, SM cable, SC sockets

Dimensions & Physical Data

Weight
0.67kg

Environmental

IP Rating
IP30

Communication & Control

Network
Line/Star

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, EN 61131 cUL 61010-1/61010-2-201 EN 50121-4

Documents

IPD Product Catalogue V17
