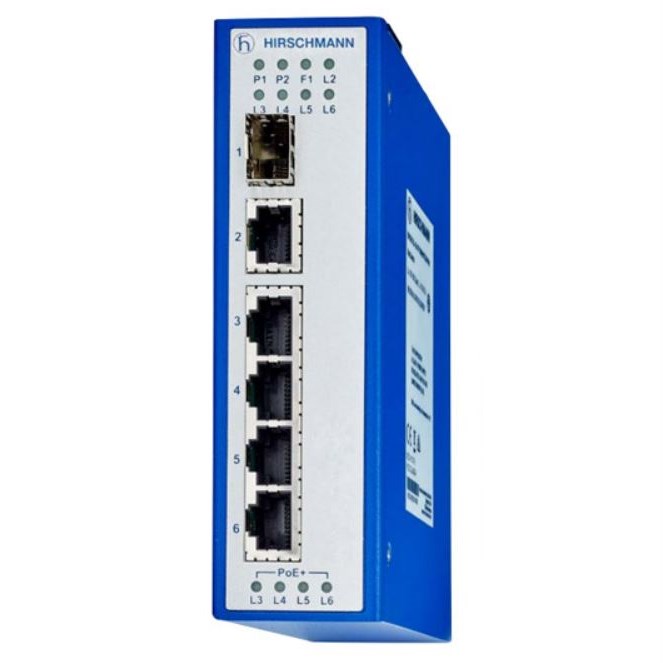

Hirschmann 942 274-002 Full Giga Unmanaged Rail Switch SPIDER-SL (5) 10/100/1000BASE-T (4) PoE+) -Port

Product Code: 942 274-002

  • Unmanaged switch for simple setup
  • Compact design: 37mm width
  • Robust IP30 protection rating
  • Operates in -40 to 70°C range
  • Supports PoE+ on 4 ports
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Unmanaged Rail Switch
Brand
Hirschmann
Series
SPIDER III

Electrical

Input Voltage
24/48V DC (12 - 57V DC / 12 - 18V DC, derating output)

Mechanical

Housing Material
Metal Housing
Mounting
DIN rail

Dimensions & Physical Data

Depth
130mm
Height
115mm
Weight
0.71kg
Width
37mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP30

Communication & Control

Connectors/Input/Output
5 x 10/100/1000BASE-T, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity , thereof 4x PoE+ ports
Total Ports
5

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, EN 61131 cUL 61010-1/61010-2-201 EN 50121-4

Documents

IPD Product Catalogue V17
