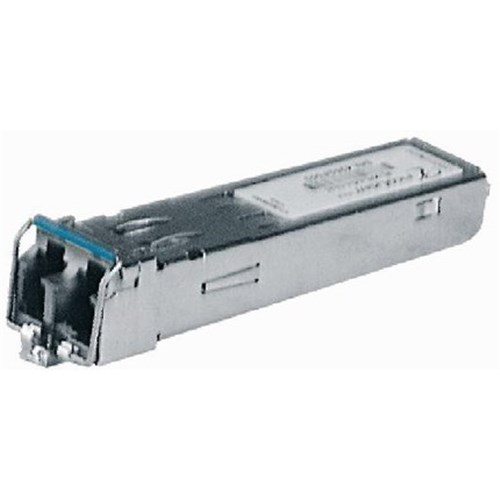

Hirschmann 942 204-002 SFP Fiber Optic Bi-Directional Fast Ethernet Transceiver Type B

Product Code: 942 204-002

  • Compact SFP slot mounting
  • LC connection for easy integration
  • Supports 100 Mbps data rate
  • Operates over 2 km distance
  • Wide temp range: -40 to 85°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Transceivers
Brand
Hirschmann
Series
SFP

Electrical

Rated Power
1W
Rated Voltage (Ur)
power supply via the switch

Mechanical

Diagnostic Functions
Optical input and output power, transceiver temperature
Mounting
SFP slot
Port Configuration
1 x 100 Mbit/s with LC connector

Dimensions & Physical Data

Depth
56.5mm
Height
8.5mm
Weight
0.04kg
Width
13.4mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 85°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
EN 60950
