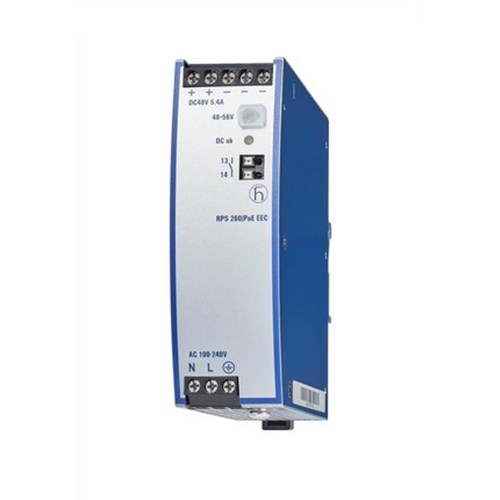

Hirschmann 942 200-001 DIN-Rail PoE Power Supply 100-240VAC 110-150VDC DIN Rail Mount

Product Code: 942 200-001

  • Wide input range: 100-240 VAC, 110-150 VDC
  • Compact design with 39 mm width
  • DIN Rail mounting for easy installation
  • Operates in -25 to 70°C temperature range
  • IP20 rated for protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Poe Power Supply
Brand
Hirschmann

Electrical

Electrical Connection
Voltage input 1 x terminal block, 3-pin Voltage output 1 x terminal block, 5-pin
Rated Voltage (Ur)
Input: AC 100-240V, DC 110-150V Output: 48 - 56 V DC (typ. 48 V) externally adjustable

Dimensions & Physical Data

Depth
117 mm
Height
124 mm
Weight
600 g
Width
39 mm

Environmental

Storage Temperature
-40-+85 °C
Operating Temperature
-25-+70 °C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE, cUL 508, cUL 60950-1, EN50121-4

Documents

IPD Product Catalogue V17
