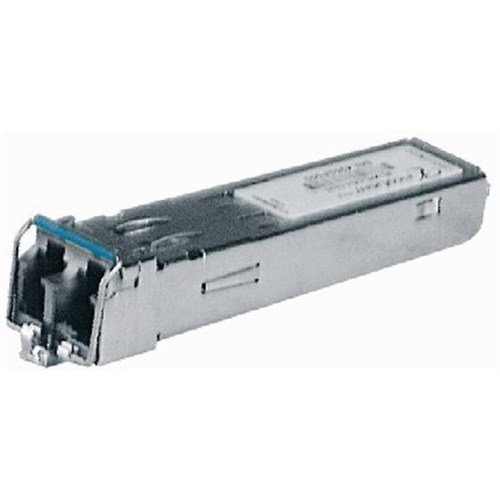

Hirschmann 942 196-002 SFP Fiber Optic Gigabit Ethernet Transceiver

Product Code: 942 196-002

  • Supports both singlemode & multimode fibre
  • Operates over distances up to 20 km
  • Compatible with LC connection type
  • Fits in standard SFP slots
  • Wide temp range: -40 to 85°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ethernet Transceiver
Brand
HIRSCHMANN

Electrical

Power Consumption
1 W
Connector Type
LC
Network Size (Length of Cable)
- 0 - 20 km (Link Budget at 1310 nm = 0 - 10.5 dB; A = 0.4 dB/km; D = 3.5 ps/(nm*km)) (Single mode fiber (SM) 9/125µm)- 0 - 550 m (Link Budget at 1310 nm = 0 - 10,5 dB; A = 1 dB/km; BLP = 800 MHz*km) With f/o adapter in line with IEEE 802.3 clause 38 (single-mode fiber offset-launch modeconditioning patch cord) (Multimode fiber (MM) 50/125µm)- 0 - 550 m (Link Budget at 1310 nm = 0 - 10,5 dB; A = 1 dB/km; BLP = 500 MHz*km) With f/o adapter in line with IEEE 802.3 clause 38 (single-mode fiber offset-launch modeconditioning patch cord)( Multimode fiber (MM)62.5/125 µm)
Interface Type
SFP
Data Rate
1000 Mbit/s

Mechanical

Mounting Type
SFP slot

Dimensions & Physical Data

Depth
56.5 mm
Height
8.5 mm
Weight
42 g
Width
13.4 mm

Environmental

Storage Temperature
-40 to +85 ºC
Operating Temperature
-40 to +85 ºC
IP Rating
IP20

Communication & Control

Transmission Media
Fiber

Safety, Standards & Compliance

Standards and Approvals
EN60950
