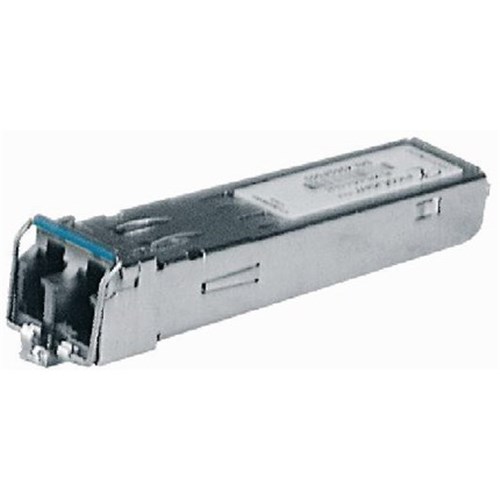

Hirschmann 942 195-002 SFP Fiber Optic Fast Ethernet Ethernet Transceiver

Product Code: 942 195-002

  • Supports 100 Mbps data rate
  • LC connection for easy integration
  • Operates in -40 to 85°C temperature range
  • IP20 protection rating
  • 25 km transmission distance
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ethernet Transceiver
Brand
HIRSCHMANN

Electrical

Power Consumption
1 W
Connector Type
LC
Network Size (Length of Cable)
- 25 km (Link Budget at 1310 nm = 0 - 13 dB; A = 0.4 dB/km, D = 3,5 ps/(nm*km)) (Single mode fiber (LH) 9/125 µm)
Interface Type
SFP
Data Rate
100 Mbit/s

Mechanical

Mounting Type
SFP slot

Dimensions & Physical Data

Depth
56.5 mm
Height
8.5 mm
Weight
41 g
Width
13.4 mm

Environmental

Storage Temperature
-40 to +85 ºC
Operating Temperature
-40 to +85 ºC
IP Rating
IP20

Communication & Control

Transmission Media
Fiber

Safety, Standards & Compliance

Standards and Approvals
EN60950
