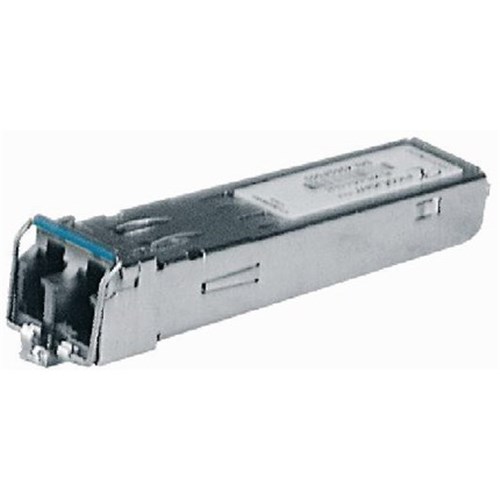

Hirschmann 942 194-002 SFP Fiber Optic Fast Ethernet Ethernet Transceiver

Product Code: 942 194-002

  • Compact 13.4 mm width for space efficiency
  • Operates in -40 to 85°C temperature range
  • IP20 rated for secure indoor use
  • Supports multimode fibre types
  • Data rate up to 100 Mbps over 4-5 km
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ethernet Transceiver
Brand
HIRSCHMANN

Electrical

Power Consumption
1 W
Connector Type
LC
Network Size (Length of Cable)
- 0 - 5000 m 0 - 8 dB link budget at 1310 nm A = 1 dB/km, 3 dB Reserve, B = 800 MHz x km( (Multimode fiber (MM) 50/125µm)- 0 - 4000 m 0 - 11 dB link budget at 1310 nm A = 1 dB/km, 3 dB Reserve, B = 500 MHz*km (Multimode fiber (MM)62.5/125 µm)
Interface Type
SFP

Mechanical

Mounting Type
SFP slot

Dimensions & Physical Data

Depth
56.5 mm
Height
8.5 mm
Weight
40 g
Width
13.4 mm

Environmental

Storage Temperature
-40-+85 °C
Operating Temperature
-40-+85 °C
IP Rating
IP20

Communication & Control

Transmission Media
Fiber

Safety, Standards & Compliance

Standards and Approvals
EN60950
