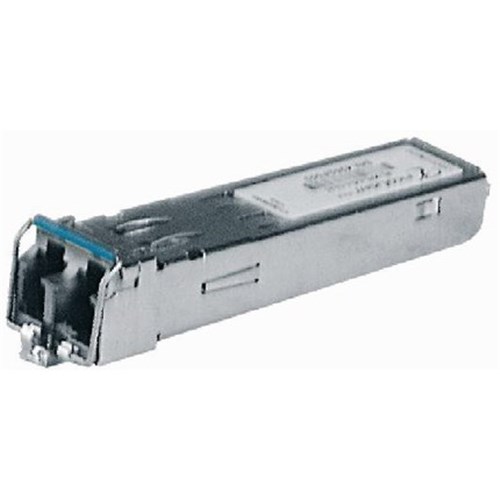

Hirschmann 942 194-001 SFP Fiber Optic Fast Ethernet Ethernet Transceiver

Product Code: 942 194-001

  • Supports multimode fibre, 50/125 mm & 62.5/12.5 mm
  • Data rate up to 100 Mbps over distances of 4-5 km
  • Compact design with a width of just 13.4 mm
  • Operates within temperatures from 0 to 60°C
  • Complies with IEC standards for durability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ethernet Transceiver
Brand
HIRSCHMANN

Electrical

Power Consumption
1 W
Connector Type
LC
Network Size (Length of Cable)
- 0 - 5000 m 0 - 8 dB link budget at 1310 nm A = 1 dB/km, 3 dB Reserve, B = 800 MHz x km (Multimode fiber (MM) 50/125µm)- 0 - 4000 m 0 - 11 dB link budget at 1310 nm A = 1 dB/km, 3 dB Reserve, B = 500 MHz*km (Multimode fiber (MM)62.5/125 µm)
Interface Type
SFP
Data Rate
100 Mbit/s

Mechanical

Mounting Type
SFP slot

Dimensions & Physical Data

Depth
56.5 mm
Height
8.5 mm
Weight
40 g
Width
13.4 mm

Environmental

Storage Temperature
-40 to +85 ºC
Operating Temperature
0 to +60 ºC
IP Rating
IP20

Communication & Control

Transmission Media
Fiber

Safety, Standards & Compliance

Standards and Approvals
EN60950

Documents

IPD Product Catalogue V17
