Specifications

General

Product Type

Switch

Brand

Hirschmann

Series

BRS

Electrical

Input Voltage

2 x 24 VDC

Redundancy

HIPER-Ring (Ring Switch), Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Client, Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Manager, Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards

Mechanical

Housing Material

PC-ABS

Mounting

DIN Rail

Dimensions & Physical Data

Depth 115 mm	Height 138 mm	Weight 0.75 Kg
Width 109 mm

Environmental

Operating Temperature

0-+60 °C

IP Rating

IP30

Communication & Control

Connectors/Input/Output 8x 10/100BASE TX / RJ45 ; 8 x PoE(+) Ports (phantom power)	Total Ports 8	Traffic Management CoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), Forward unknown multicast to query ports per vlan, GARP Multicast Registration Protocol (GMRP), GARP VLAN Registration Protocol (GVRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, Jumbo Frames, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p), Queue-Shaping / Max. Queue Bandwidth, Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, TSN 802.1Qbv Support on interfaces 1/1 - 1/3., Unknown Multicast Filtering, VLAN (802.1Q), Voice VLAN
Network Management Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, HTTP, HTTPS, IPv6 Management, Traps, SNMP v1/v2/v3, SNMPv3 Traps, Telnet

Safety, Standards & Compliance

Standards and Approvals

CE, FCC, EN61131, EN62368-1 IEC 62443-4-2 Security Level 2

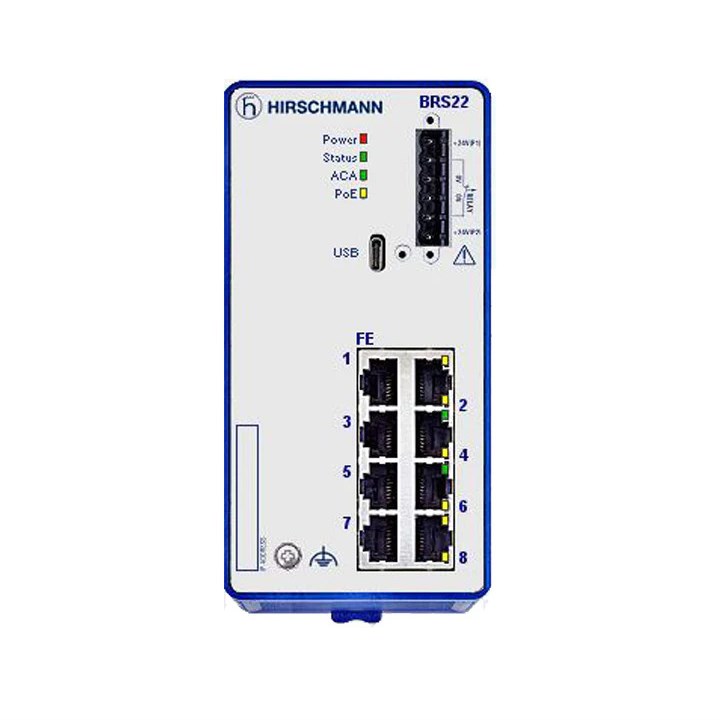

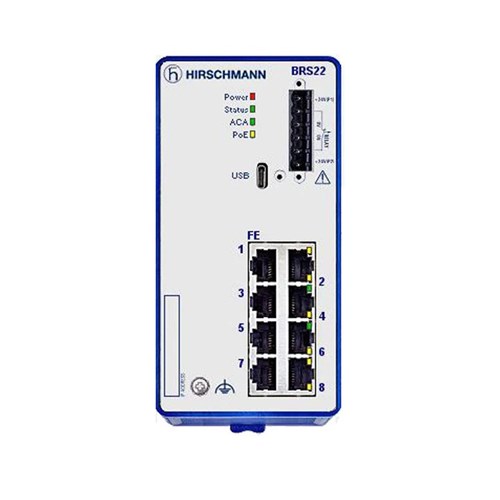

Hirschmann 942 170-999-031 Managed Fast Ethernet Switch 8 x 10/100 Mbps -Port (2) 24VAC

Product Code: 942 170-999-031
