  • Hirschmann 942 170-999-028 Managed Fast Ethernet Switch 8x100/1000 Mbps 4x100/1000/2500 Mbps

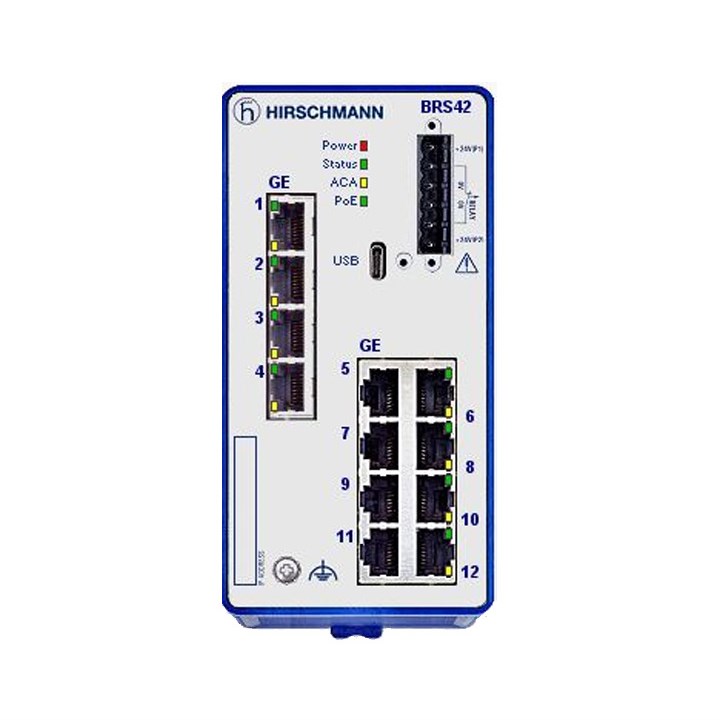

Hirschmann 942 170-999-028 Managed Fast Ethernet Switch 8x100/1000 Mbps 4x100/1000/2500 Mbps

Product Code: 942 170-999-028

  • Managed switch for precise network control
  • Dual voltage inputs: 48 VDC & 54 VDC
  • Compact DIN rail mount design
  • IP30 protection for indoor use
  • Supports up to 16 ports with varied speeds
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch
Brand
Hirschmann
Series
BRS

Electrical

Input Voltage
2 x 12 VDC ... 24 VDC
Redundancy
HIPER-Ring (Ring Switch), Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Client, Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Manager, Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards

Mechanical

Housing Material
PC-ABS
Mounting
DIN Rail

Dimensions & Physical Data

Depth
115 mm
Height
138 mm
Weight
0.55 Kg
Width
73 mm

Environmental

Operating Temperature
0-+60 °C
IP Rating
IP30

Communication & Control

Connectors/Input/Output
8x 10/100/1000BASE TX / RJ45, 4x 100/1000Mbit/s fiber ; 8 x PoE(+) Ports (phantom power) ; 1. Uplink: 2 x SFP Slot (100/1000 Mbit/s) ; 2. Uplink: 2 x SFP Slot (100/1000 Mbit/s)
Total Ports
12
Traffic Management
CoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), Forward unknown multicast to query ports per vlan, GARP Multicast Registration Protocol (GMRP), GARP VLAN Registration Protocol (GVRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, Jumbo Frames, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p), Queue-Shaping / Max. Queue Bandwidth, Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, TSN 802.1Qbv Support on interfaces 1/1 - 1/3., Unknown Multicast Filtering, VLAN (802.1Q), Voice VLAN
Network Management
Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, HTTP, HTTPS, IPv6 Management, Traps, SNMP v1/v2/v3, SNMPv3 Traps, Telnet

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, EN61131, EN62368-1 cUL61010 IEC 62443-4-2 Security Level 2
