Specifications

Product Type

Industrial Ethernet Switch

Brand

Hirschmann

Series

BRS

Input Voltage

2 x 12 VDC ... 24 VDC

Housing Material

PC-ABS

Mounting

DIN rail

Depth 115mm	Height 138mm	Weight 0.57kg
Width 73mm

Operating Temperature

-40°C to 70°C

IP Rating

IP30

Connectors/Input/Output 8x 10/100BASE TX / RJ45; 4x 100/1000Mbit/s fiber ; 1. Uplink: 2 x SFP Slot (100/1000 Mbit/s) ; 2. Uplink: 2 x SFP Slot (100/1000 Mbit/s)	Total Ports 12	Traffic Management CoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), Forward unknown multicast to query ports per vlan, GARP Multicast Registration Protocol (GMRP), GARP VLAN Registration Protocol (GVRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, Jumbo Frames, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p), Queue-Shaping / Max. Queue Bandwidth, Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, TSN 802.1Qbv Support on interfaces 1/1 - 1/3., Unknown Multicast Filtering, VLAN (802.1Q), Voice VLAN
Network Management Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, HTTP, HTTPS, IPv6 Management, Traps, SNMP v1/v2/v3, SNMPv3 Traps, Telnet

Standards and Approvals

CE, FCC, EN 61131, EN 62368-1 IEC 62443-4-2 Security Level 2

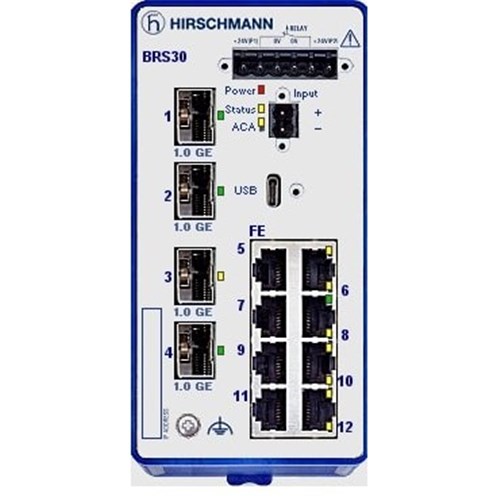

Hirschmann 942 170-999-017 Managed Fast Ethernet Switch 8 x 10/100 Base-TX RJ45 4 x 100/1000 SFP -Port (2) 12-24VDC
