Specifications

Product Type

Managed Fast Ethernet Switch

Brand

Hirschmann

Series

BRS

Input Voltage

2 x 12 VDC ... 24 VDC

Housing Material

PC-ABS

Mounting

DIN rail

Depth 115mm	Height 138mm	Weight 0.95kg
Width 109mm

Operating Temperature

0°C to 60°C

IP Rating

IP30

Connectors/Input/Output 16x 10/100/1000BASE TX / RJ45; 4x 100/1000/2500Mbit/s fiber ; 1. Uplink: 2 x SFP Slot (100/1000/2500 Mbit/s) ; 2. Uplink: 2 x SFP Slot (100/1000/2500 Mbit/s)	Total Ports 20	Traffic Management CoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), Forward unknown multicast to query ports per vlan, GARP Multicast Registration Protocol (GMRP), GARP VLAN Registration Protocol (GVRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, Jumbo Frames, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p), Queue-Shaping / Max. Queue Bandwidth, Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, TSN 802.1Qbv Support on interfaces 1/1 - 1/3., Unknown Multicast Filtering, VLAN (802.1Q), Voice VLAN
Network Management Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, HTTP, HTTPS, IPv6 Management, Traps, SNMP v1/v2/v3, SNMPv3 Traps, Telnet

Standards and Approvals

CE, FCC, EN 61131, EN 62368-1 cUL61010 IEC 62443-4-2 Security Level 2

Development Software

HiOS Layer 2 Standard

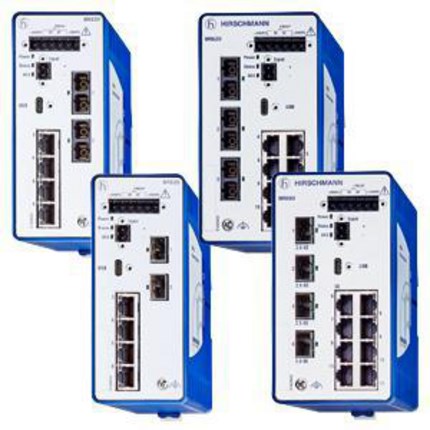

Hirschmann 942 170-069 Managed Fast Ethernet Switch 12-24VDC
