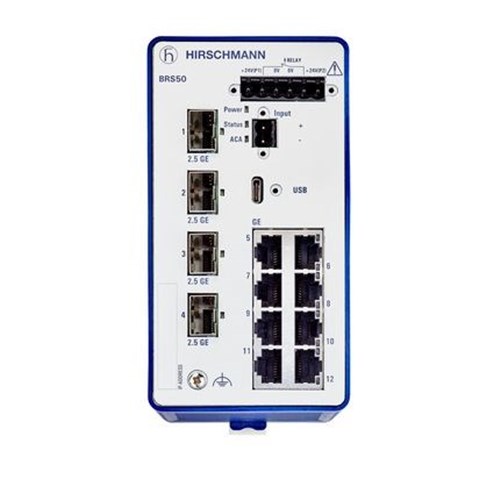

Product Code: 942 170-010

Managed switch with DIN Rail mounting
Supports 12-24 VDC input voltage
Features 4x 2.5G SFP, 8x GIG TX ports
Compact size: 73mm W x 138mm H x 115mm D
IP30 rated for protection

Specifications

General

Product Type

Switch

Brand

Hirschmann

Series

BRS

Electrical

Input Voltage

2 x 12 VDC ... 24 VDC

Redundancy

HIPER-Ring (Ring Switch), Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Client, Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Manager, Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards

Mechanical

Housing Material

PC-ABS

Mounting

DIN Rail

Dimensions & Physical Data

Depth 115 mm	Height 138 mm	Weight 0.57 Kg
Width 73 mm

Environmental

Operating Temperature

0-+60 °C

IP Rating

IP30

Communication & Control

Connectors/Input/Output 8x 10/100/1000BASE TX / RJ45; 4x 100/1000/2500Mbit/s fiber ; 1. Uplink: 2 x SFP Slot (100/1000/2500 Mbit/s) ; 2. Uplink: 2 x SFP Slot (100/1000/2500 Mbit/s)	Total Ports 12	Traffic Management CoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), Forward unknown multicast to query ports per vlan, GARP Multicast Registration Protocol (GMRP), GARP VLAN Registration Protocol (GVRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, Jumbo Frames, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p), Queue-Shaping / Max. Queue Bandwidth, Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, TSN 802.1Qbv Support on interfaces 1/1 - 1/3., Unknown Multicast Filtering, VLAN (802.1Q), Voice VLAN
Network Management Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, HTTP, HTTPS, IPv6 Management, Traps, SNMP v1/v2/v3, SNMPv3 Traps, Telnet

Safety, Standards & Compliance

Standards and Approvals

CE, FCC, EN61131, EN62368-1 cUL61010 IEC 62443-4-2 Security Level 2

Accessories & Additional Information

Development Software

HiOS Layer 2 Standard

Hirschmann 942 170-010 Managed DIN Rail Mount Switch 4 x 2.5 GIG SFP 8 x GIG TX -Port (2) 12-24VDC
