Specifications

Product Type

Managed Ethernet Switch

Brand

Hirschmann

Series

BRS

Input Voltage

2 x 12 VDC ... 24 VDC

Housing Material

PC-ABS

Mounting

DIN rail

Depth 115mm	Height 138mm	Weight 0.38kg
Width 57mm

Operating Temperature

0°C to 60°C

IP Rating

IP30

Connectors/Input/Output 4x 10/100BASE TX / RJ45	Total Ports 4	Traffic Management CoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), Forward unknown multicast to query ports per vlan, GARP Multicast Registration Protocol (GMRP), GARP VLAN Registration Protocol (GVRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, Jumbo Frames, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p), Queue-Shaping / Max. Queue Bandwidth, Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, TSN 802.1Qbv Support on interfaces 1/1 - 1/3., Unknown Multicast Filtering, VLAN (802.1Q), Voice VLAN
Network Management Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, HTTP, HTTPS, IPv6 Management, Traps, SNMP v1/v2/v3, SNMPv3 Traps, Telnet

Standards and Approvals

CE, FCC, EN 61131, EN 62368-1 cUL61010 IEC 62443-4-2 Security Level 2

Development Software

HiOS Layer 2 Standard

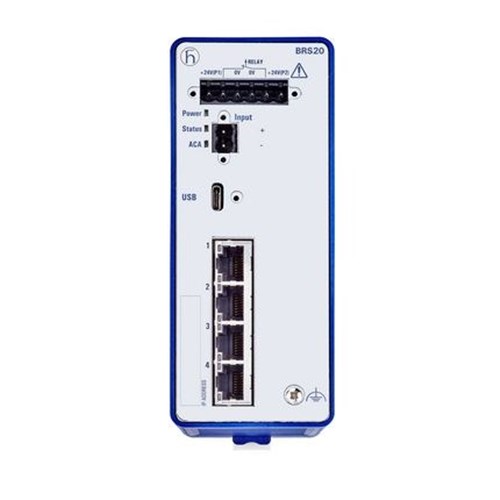

Hirschmann 942 170-001 Managed DIN Rail Mount Switch 4 x Fast Ethernet TX -Port (2) 12-24VDC
