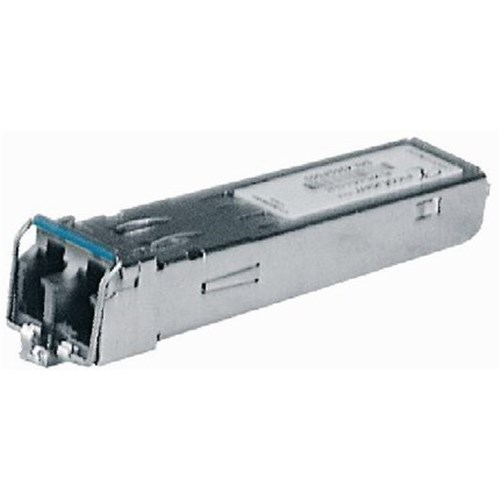

Hirschmann 942 163-001 SFP Fiber Optic Singlemode Ethernet Transceiver 1 x 2500 Mbps W/LC connector -Port

Product Code: 942 163-001

  • Compact 13.4 mm width
  • Fits SFP slot for easy install
  • Operates in -40 to 85°C range
  • IP20 protection rating
  • 2500 Mbps LC connector port
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ethernet Transceiver
Brand
HIRSCHMANN

Electrical

Power Consumption
1 W
Connector Type
LC
Network Size (Length of Cable)
- 0 to 5 km, 1310 nm; 8.5 dB link budget; 0.55 dB/km; GR-253 CORE (Single mode fiber (SM) 9/125µm)
Interface Type
SFP
Data Rate
2500 Mbit/s

Mechanical

Mounting Type
SFP+ slot

Dimensions & Physical Data

Depth
56.5 mm
Height
8.5 mm
Weight
30 g
Width
13.4 mm

Environmental

Storage Temperature
-40 to +85 ºC
Operating Temperature
-40 to +85 ºC
IP Rating
IP20

Communication & Control

Transmission Media
Fiber

Safety, Standards & Compliance

Standards and Approvals
EN60950

Documents

IPD Product Catalogue V17
