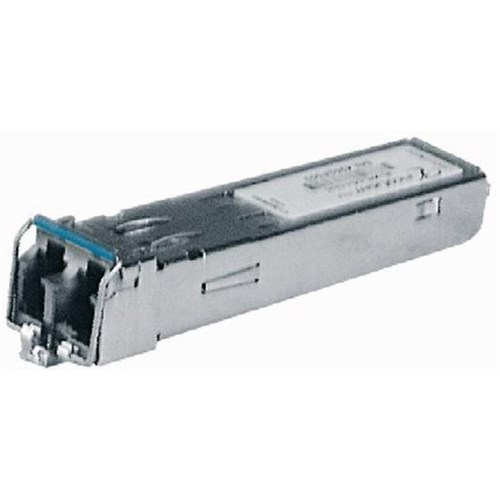

Hirschmann 942 162-001 SFP Fiber Optic Multimode Ethernet Transceiver 1 x 2500 Mbps W/LC connector -Port

Product Code: 942 162-001

  • Compact design with 13.4 mm width
  • Operates in extreme temperatures: -40 to 85°C
  • Supports multimode fibre types
  • IP20 protection for secure installation
  • High-speed data transfer at 2500 Mbps
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Transceivers
Brand
Hirschmann
Series
SFP

Electrical

Rated Power
1W
Rated Voltage (Ur)
power supply via the switch

Mechanical

Diagnostic Functions
Optical input and output power, transceiver temperature
Mounting
SFP+ slot
Port Configuration
1 x 2500 Mbit/s with LC connector

Dimensions & Physical Data

Depth
56.5mm
Height
8.5mm
Weight
0.03kg
Width
13.4mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 85°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
EN 60950
