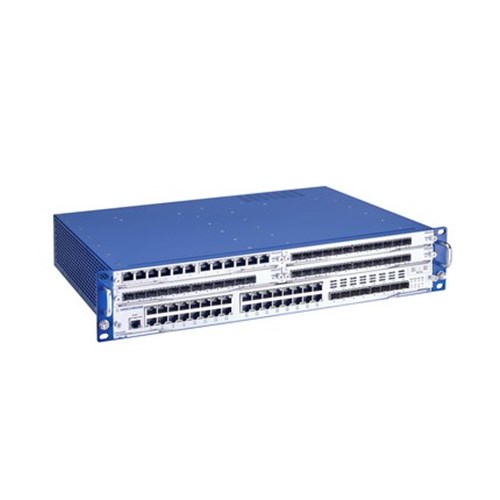

Hirschmann 942 153-001 Rack Mount Backbone Switch 19 in Control Cabinet Mount 100-240VAC

Backbone Switch

Hirschmann

Dragon MACH4000

120W (incl. SFP transceivers + 1 PSU + Fan module)

PSU unit input: 100 - 240V AC; switch can be operated with either 1 or 2 field-replaceable PSU units (to be ordered separately)

19" control cabinet

Ports in total up to 88, Basic unit 8 fixed ports: 8x 1/2.5/10 GE SFP+ plus 32x FE/GE TX ports, Modular: 48x FE/GE ports expandable with four media module slots, 12 FE/GE ports per module

445mm

88mm

480mm

-40°C to 70°C

0°C to 60°C

IP20

1 x USB to connect auto-configuration adapter ACA22-USB

Independent VLAN Learning, Fast Aging, Static Unicast/Multicast Address Entries, QoS / Port Prioritization (802.1D/p), TOS/DSCP Prioritization, Interface Trust Mode, CoS Queue Management, IP Ingress DiffServ Classification and Policing, IP Egress DiffServ Classification and Policing, Queue-Shaping / Max. Queue Bandwidth, Flow Control (802.3X), Egress Interface Shaping, Ingress Storm Protection, Jumbo Frames, VLAN (802.1Q), Protocol-based VLAN, VLAN Unaware Mode, GARP VLAN Registration Protocol (GVRP), Voice VLAN, MAC-based VLAN, IP subnet-based VLAN, GARP Multicast Registration Protocol (GMRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Unknown Multicast Filtering, Multiple VLAN Registration Protocol (MVRP), Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Layer 2 Loop Protection

Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet, DNS Client, OPC-UA Server

C-Tick, CE, EN 61131 cUL61010-1/-2-201, EN 60950-1 EN 50121-4

HiOS 09.0.11
