Product Code: 942 142-999-002

Specifications

General

Product Type

Firewall

Brand

Hirschmann

Series

OpenBAT-R / -F

Electrical

Connectors 3 × N socket for each WLAN module	Communication Protocols IEEE 802.11a/b/g/n WLAN interface as per IEEE 802.11n, up to 450 Mbit/s gross bandwidth	Rated Power max. 10W
Rated Voltage (Ur) 24 VDC (16.8-32 VDC)

Mechanical

Material

metal

Mounting

Wall mounting. Mast/Pole mounting – set available separately.

Port Configuration

First Ethernet: 8-pin, X-coded M12

Dimensions & Physical Data

Depth 56mm	Height 202mm	Weight 2kg
Width 261mm

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

-40°C to 70°C

IP Rating

IP65 / IP67

Communication & Control

Radio Frequency WLAN Supports 2.4 GHz and 5 GHz: 2400 -2483.5MHz (ISM) and 5170 -5850MHz	Modulation 20M0F7D (DSSS/OFDM) @ 2.4 GHz, 20M0G7D (OFDM) @ 5 GHz, MCS 0 - MCS23	Radio Features Integrated ESD protection, Clear Space®. 3x3 MIMO (configurable). Up to 3 streams (configurable)
Encryption Open, WEP, 802.11i - WPA/WPA2 - Personal (PSK), 802.11i - WPA/WPA2 - Enterprise (802.1X: TLS, TTLS/PAP, TTLS/CHAP, TTLS/MSCHAP, TTLS/MSCHAPV2, TTLS/MD5, PEAP/MSCHAPV2)

Safety, Standards & Compliance

Standards and Approvals

EN 60950-1 EN 300 328 (2.4 GHz), EN 301 893 (5 GHz), EN 302 502 (5.8 GHz)

Accessories & Additional Information

Development Software

WLAN Controller, Industrial HiVision, LANConfig

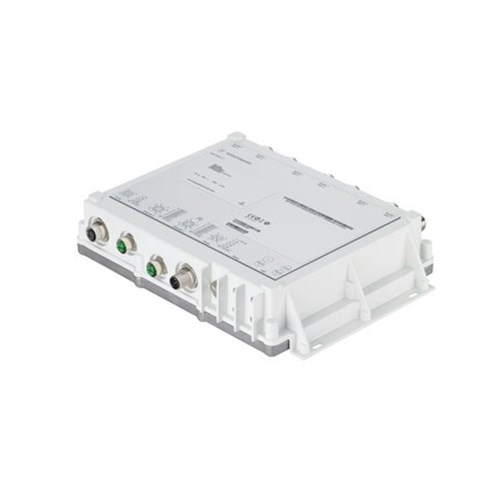

Hirschmann 942 142-999-002 Wireless Access Point
