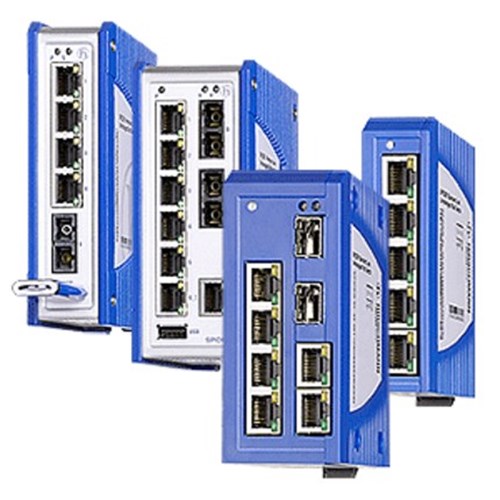

Hirschmann 942 141-999-016 Ethernet Unmanaged Switch

Product Code: 942 141-999-016

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Unmanaged Ethernet Switch
Brand
Hirschmann
Series
SPIDER III

Electrical

Input Voltage
12/24/48V DC (9.6 - 60V DC), 24V AC, redundant

Mechanical

Housing Material
Metal Housing
Mounting
DIN rail

Dimensions & Physical Data

Depth
114.7mm
Height
163.6mm
Weight
1.14kg
Width
94mm

Environmental

IP Rating
IP40

Communication & Control

Connectors/Input/Output
24 x 10/100BASE-TX, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity , 2 x 100MBit/s SFP
Total Ports
26

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, EN 61131 cUL 61010-1/61010-2-201 ISA 12.12.01 Class 1 Div. 2

Documents

IPD Product Catalogue V17
