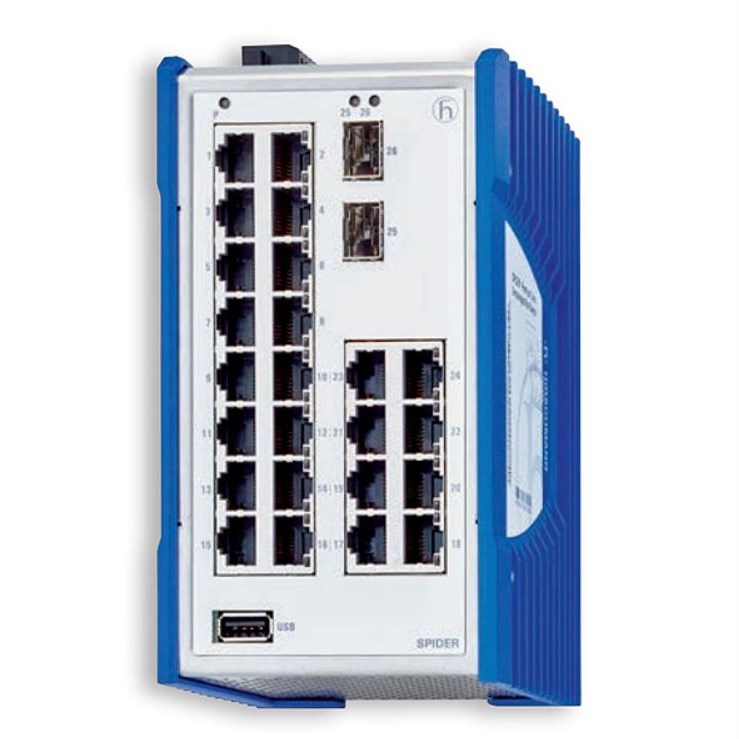

Hirschmann 942 141-038 Unmanaged DIN Rail Mount Switch 24 x 10/100 Base-TX RJ45 2 x 100/1000 SFP -Port 24VAC

Product Code: 942 141-038

  • Unmanaged switch with 24 RJ-45 ports
  • Supports 2 SFP for flexible connectivity
  • Operates in extreme temps: -40 to 70°C
  • DIN Rail mountable for easy installation
  • IP40 rated for solid protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Ethernet Switch
Brand
Hirschmann
Series
Spider

Electrical

Input Voltage
12/24/48V DC (9.6 - 60V DC), 24V AC, redundant

Mechanical

Housing Material
Metal
Mounting
DIN rail

Dimensions & Physical Data

Depth
114.7mm
Height
163.6mm
Weight
1.14kg
Width
95mm

Environmental

IP Rating
IP40

Communication & Control

Connectors/Input/Output
24 x 10/100BASE-TX, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity , 2 x 100/1000MBit/s SFP
Total Ports
24

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, EN 61131 UL 61010-2-210

Documents

IPD Product Catalogue V17
