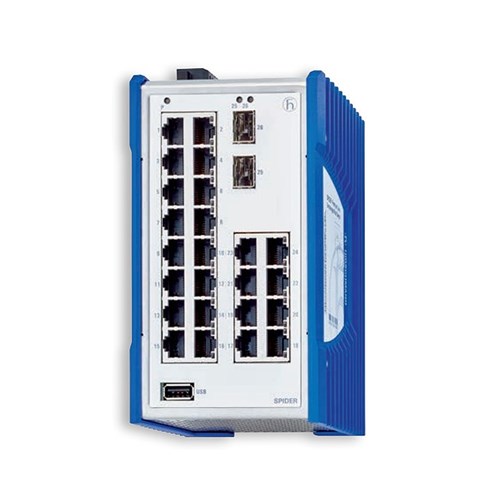

Hirschmann 942 141-032 Unmanaged DIN Rail Mount Switch 24 x 10/100 Base-TX 2 x 100 Mbps SFP -Port 12-48VDC

Product Code: 942 141-032

  • Supports 24 x 10/100 Base-TX ports
  • Includes 2 x 100 Mbps SFP slots
  • Operates in -40 to 70°C temperature range
  • DIN Rail mounting for easy installation
  • CE, FCC, EN61131 approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Unmanaged Ethernet Switch
Brand
Hirschmann
Series
Spider

Electrical

Input Voltage
12/24/48V DC (9.6 - 60V DC), 24V AC, redundant

Mechanical

Housing Material
Metal
Mounting
DIN rail

Dimensions & Physical Data

Depth
114.7mm
Height
163.6mm
Weight
1.14kg
Width
94mm

Environmental

IP Rating
IP40

Communication & Control

Connectors/Input/Output
24 x 10/100BASE-TX, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity , 2 x 100MBit/s SFP
Total Ports
24

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, EN 61131
