Specifications

Product Type

Managed Ethernet Switch

Brand

Hirschmann

Series

RED25

Input Voltage

12-48 VDC (nominal), 9.6-60 VDC (range) and 24 VAC (nominal), 18-30 VAC (range); (redundant)

Mounting

DIN rail

Depth 111mm	Height 131mm	Weight 0.32kg
Width 47mm

Operating Temperature

-40°C to 60°C

IP Rating

IP20

Connectors/Input/Output 2 x 10/100 Mbit/s Twisted Pair / RJ45 ; 2 FE-SFP slot	Total Ports 4	Traffic Management CoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p), Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, Unknown Multicast Filtering, VLAN (802.1Q), VLAN Unaware Mode, Voice VLAN
Network Management Dual Software Image Support, TFTP, SFTP. SCP. LLDP (802.1AB), LLDP-MED, SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet

Standards and Approvals

CE, FCC, EN 61131

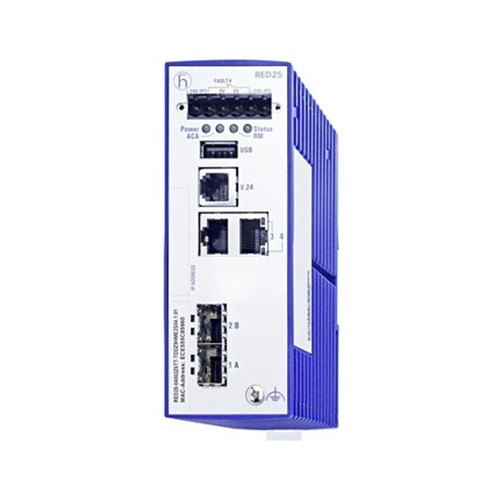

Hirschmann 942 137-999-004 Managed Ethernet Switch 60VDC
