Specifications

Product Type

Modular Managed Industrial Switch

Brand

Hirschmann

Power Consumption Basic unit with one power supply 32W	No. of Ports 2 x SFP (1G/2.5G), 10 x 10/100/1000 BASE-T (RJ45), expandable to 28 ports	V.24 Interface 1 x RJ11
Network Cable Type Twisted pair, SSingle mode fiber(SM) 9/125 µm, Single mode fiber(LH) 9/125 µm, Multimode fiber (MM)50/125 µm, Multimode fiber (MM)62.5/125 µm

Mounting

Rack mount

SD-Card Slot

1 x SD card

Depth 354mm	Height 44mm	Weight 3.6kg
Width 444mm	Network Cable Length 0-100 m (Twisted pair)

Storage Temperature

-40°C to 70°C

Operating Temperature

0°C to 60°C

IP Rating

IP30

USB Port

1 x USB

Standards and Approvals

CE, FCC, EN 61131, EN 60950, IEC 61850, IEEE1613, IEC 62443-4-2 Security Level 2

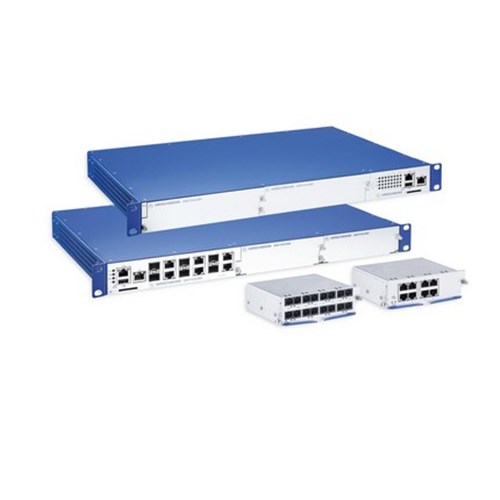

Hirschmann 942 135-999-053 Managed Rackmount Ethernet Switch
