Product Code: 942 135-999-039

Managed rack-mounted design for efficient networking
Supports 110-240 VAC with 32 W power rating
Offers versatile connectivity with multiple port options
IP30 protection ensures reliable performance
Complies with CE, FCC, EN61131, and EN60950 standards

Specifications

General

Product Type

Managed Rackmount Ethernet Switch

Brand

Hirschmann

Series

GREYHOUND 1040

Electrical

Electrical Connection

Switch can be operated with field-replaceable PSU units (to be ordered separately), Power supply input 1: 3 pin plug-in terminal block, signal contact: 2 pin plug-in terminal block , Power supply input 2: 3 pin plug-in terminal block

Rated Power

Basic unit with one power supply 32W

Rated Voltage (Ur)

Power supply input 1: 60 - 250 VDC and 110 - 240 VAC, 50 Hz - 60 Hz possible power supply type K , Power supply input 2: 60 - 250 VDC and 110 - 240 VAC, 50 Hz - 60 Hz possible power supply type K

Mechanical

Mounting

Rack mount

Port Configuration

Ports in total up to 28 Basic unit 12 fixed ports: 4 x GE/2.5GE SFP slot plus 2 x FE/GE SFP plus 6 x FE/GE TX expandable with two media module slots; 8 FE/GE ports per module

Dimensions & Physical Data

Depth 354mm	Height 44mm	Weight 3.6kg
Width 444mm

Environmental

Storage Temperature

-40°C to 70°C

Operating Temperature

0°C to 60°C

IP Rating

IP30

Communication & Control

USB Port

1 x USB to connect auto-configuration adapter ACA22-USB

Traffic Management

CoS Queue Management, Double VLAN Tagging (QinQ), Egress Interface Shaping, Fast Aging, Flow Control (802.3X), Forward unknown multicast to query ports, GARP Multicast Registration Protocol (GMRP), GARP VLAN Registration Protocol (GVRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, IP Egress DiffServ Classification and Policing, IP Ingress DiffServ Classification and Policing, IP subnet-based VLAN, Jumbo Frames, MAC-based VLAN, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), Private VLAN, Protocol-based VLAN, QoS / Port Prioritization (802.1D/p), Queue-Shaping / Max. Queue Bandwidth, Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, Unknown Multicast Filtering, VLAN (802.1Q), VLAN Unaware Mode, Voice VLAN

Network Management

DNS Client, Dual Software Image Support, HTTP, HTTPS, LLDP (802.1AB), LLDP-MED, OPC-UA Server, SCP, SFTP, SNMP v1/v2/v3, SSHv2, Telnet, TFTP, Traps, V.24

Safety, Standards & Compliance

Standards and Approvals

CE, FCC, EN 61131 EN 60950 IEC 61850, IEEE1613 IEC 62443-4-2 Security Level 2

Accessories & Additional Information

Development Software

HiOS 09.0.11

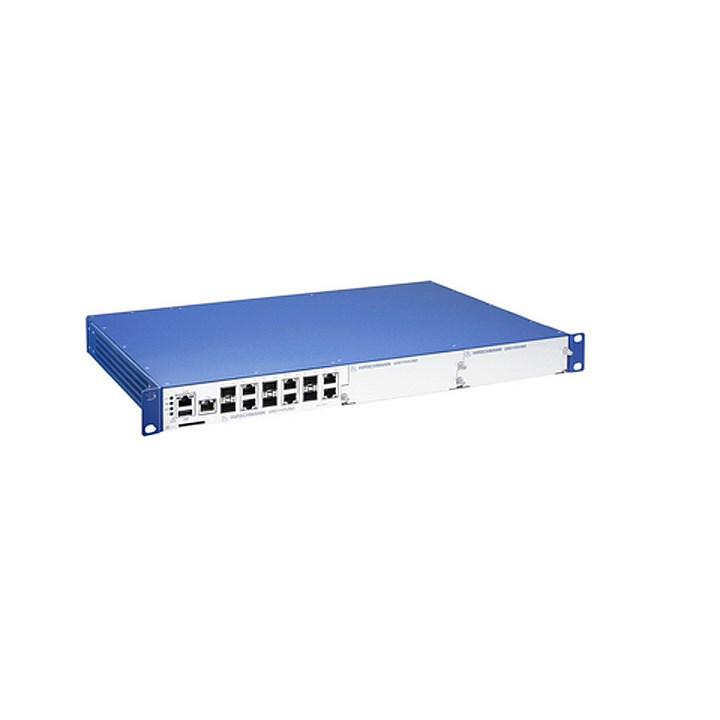

Hirschmann 942 135-999-039 Managed Rackmount Ethernet Switch Rack Mount 4xGE/2.5GE SFP 2xFE/GE SFP 6xFE/GE TX 2
