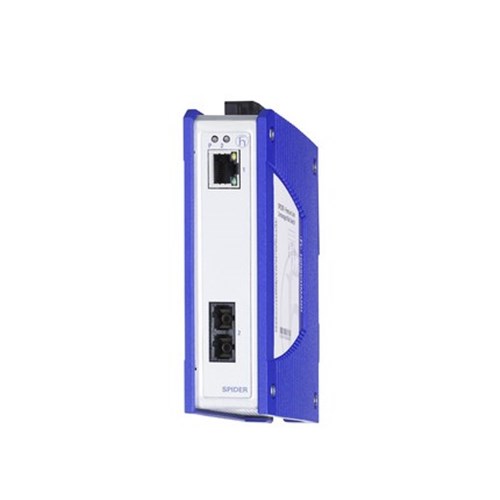

Hirschmann 942 132-017 Ethernet Switch SPIDER III

Product Code: 942 132-017

  • Unmanaged switch for simple networking
  • Compact design, easy DIN rail/wall mount
  • Low power consumption at 1.5 W
  • Operates on 32 VDC supply
  • IP30 protection for reliable use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ethernet Switch
Brand
Hirschmann
Series
SPIDER III

Electrical

Input Voltage
12/24V DC (9.6 - 32V DC)

Mechanical

Housing Material
plastic
Mounting
DIN rail

Dimensions & Physical Data

Depth
79mm
Height
102mm
Weight
0.15kg
Width
38mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP30

Communication & Control

Connectors/Input/Output
8 x 10/100BASE-TX, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity
Total Ports
8

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, EN 61131 cUL 61010-1/61010-2-201

Documents

IPD Product Catalogue V17
