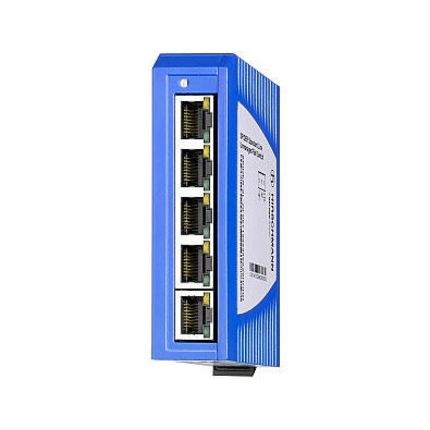

Hirschmann 942 132-016 Unmanaged DIN Rail Mount Switch 5 x 10/100 Base-TX RJ45 -Port 12-24VDC

Product Code: 942 132-016

  • Compact design: 26mm width
  • Versatile mounting: DIN Rail, Wall
  • Wide temp range: -40 to 70°C
  • Reliable protection: IP30 rated
  • 5 ports with 10/100 Base-TX RJ-45
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Unmanaged Ethernet Switch
Brand
Hirschmann
Series
Spider

Electrical

Input Voltage
12/24V DC (9.6 - 32V DC)

Mechanical

Housing Material
Plastic
Mounting
DIN rail

Dimensions & Physical Data

Depth
79mm
Height
102mm
Weight
0.12kg
Width
26mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP30

Communication & Control

Connectors/Input/Output
5 x 10/100BASE-TX, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity
Total Ports
5

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, EN 61131 cUL 61010-1/61010-2-206
