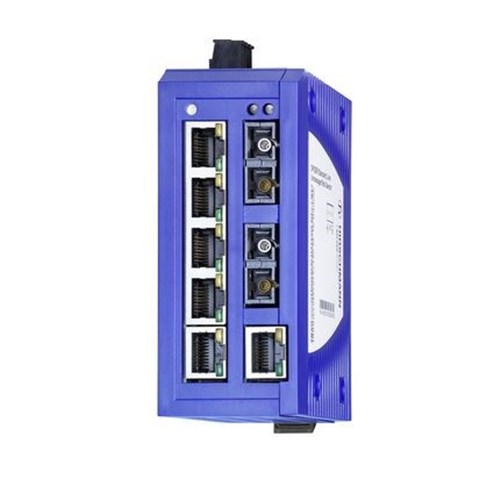

Hirschmann 942 132-012 Unmanaged DIN Rail Mount Switch 6 x 10/100 Base-TX RJ45 2 x 100 Base-FX -Port 12/24VDC

Product Code: 942 132-012

  • Unmanaged switch with 6 RJ-45 and 2 FX ports
  • Supports DIN rail and wall mounting
  • Compact size: 45mm W x 110mm H x 88mm D
  • Operates efficiently at 0 to 60°C
  • IP30 protection, CE and FCC approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Ethernet Switch
Brand
Hirschmann
Series
Spider

Electrical

Input Voltage
12/24V DC (9.6 - 32V DC)

Mechanical

Housing Material
Plastic
Mounting
DIN rail

Dimensions & Physical Data

Depth
88mm
Height
110mm
Weight
0.23kg
Width
45mm

Environmental

Operating Temperature
0°C to 60°C
IP Rating
IP30

Communication & Control

Connectors/Input/Output
6 x 10/100BASE-TX, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity , 2 x 100BASE-FX, MM cable, SC sockets
Total Ports
6

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, EN 61131 cUL 61010-1/61010-2-204
