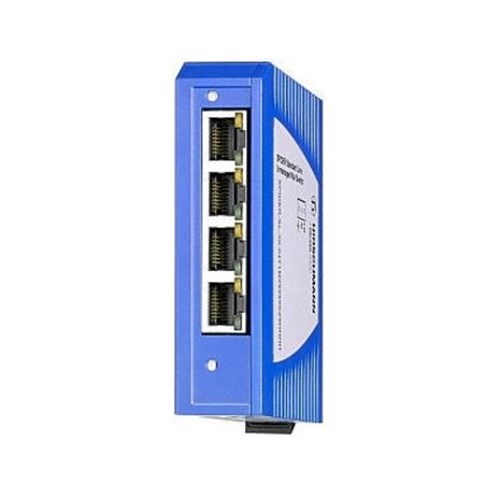

Hirschmann 942 132-008 Unmanaged DIN Rail Mount Switch 4 x 10/100 Base-TX RJ45 1 x 100 Base-FX -Port 12-24VDC

Product Code: 942 132-008

  • Unmanaged switch for simple network setups
  • Compact design: 26mm width, 102mm height
  • Versatile mounting: DIN rail or wall
  • IP30 protection for indoor use
  • Supports 4 RJ-45 and 1 FX port
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Ethernet Switch
Brand
Hirschmann
Series
Spider

Electrical

Input Voltage
12/24V DC (9.6 - 32V DC)

Mechanical

Housing Material
Plastic
Mounting
DIN rail

Dimensions & Physical Data

Depth
79mm
Height
102mm
Weight
0.12kg
Width
26mm

Environmental

Operating Temperature
0°C to 60°C
IP Rating
IP30

Communication & Control

Connectors/Input/Output
4 x 10/100BASE-TX, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity , 1 x 100BASE-FX, MM cable, ST sockets
Total Ports
4

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, EN 61131 cUL 61010-1/61010-2-202
