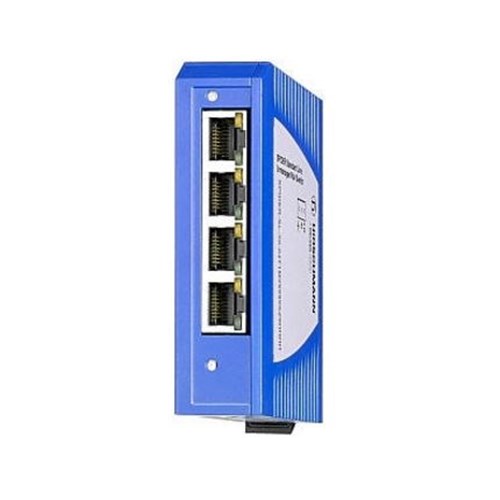

Hirschmann 942 132-007 Unmanaged DIN Rail Mount Switch 4 x 10/100 Base-TX RJ45 1 x 100 Base-FX -Port 32VDC

Product Code: 942 132-007

  • Unmanaged switch for simple networking
  • 4 RJ-45 and 1 FX port for connectivity
  • Compact DIN rail or wall mount design
  • Operates efficiently at 0 to 50°C
  • IP30 protection with CE, FCC, cUL approvals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Unmanaged Ethernet Switch
Brand
Hirschmann
Series
Spider

Electrical

Input Voltage
12/24V DC (9.6 - 32V DC)

Mechanical

Housing Material
Plastic
Mounting
DIN rail

Dimensions & Physical Data

Depth
79mm
Height
102mm
Weight
0.12kg
Width
26mm

Environmental

Operating Temperature
0°C to 60°C
IP Rating
IP30

Communication & Control

Connectors/Input/Output
4 x 10/100BASE-TX, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity , 1 x 100BASE-FX, MM cable, SC sockets
Total Ports
4

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, EN 61131 cUL 61010-1/61010-2-201

Documents

IPD Product Catalogue V17
