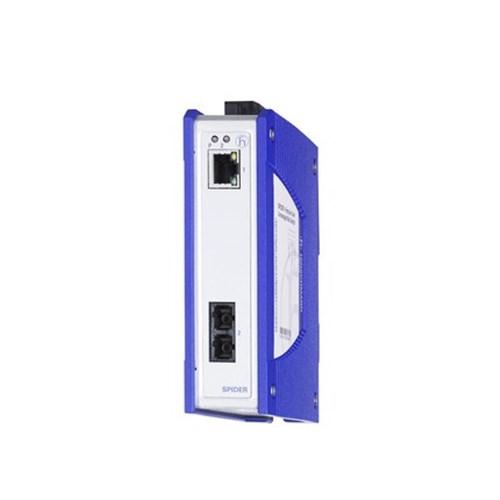

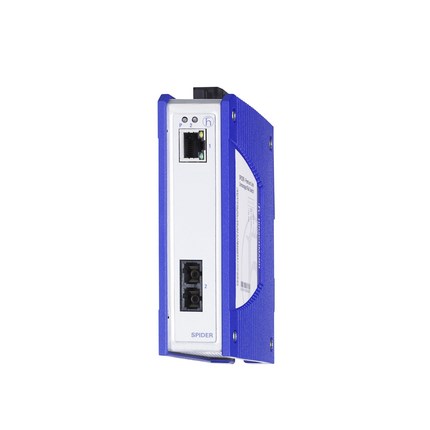

  • Hirschmann 942 132-006 Unmanaged DIN Rail Mount Switch 1 x 10/100 Base-TX RJ45 1 x 100 Base-FX -Port 12-24VDC

Hirschmann 942 132-006 Unmanaged DIN Rail Mount Switch 1 x 10/100 Base-TX RJ45 1 x 100 Base-FX -Port 12-24VDC

Product Code: 942 132-006

  • Unmanaged switch for simple network setups
  • Compact design: 26mm width, 102mm height
  • Dual mounting: DIN rail or wall options
  • IP30 protection for indoor use
  • Supports FX Single Mode cable connections
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ethernet Switches
Brand
HIRSCHMANN
Series
SPIDER III

Electrical

Operating Voltage
12/24 V DC (9.6 - 32 V DC)
Power Consumption
2.0 W
No. of Ports
2

Mechanical

Cable Length (Supported Range)
0 – 100 m (Twisted Pair ) ,0 - 30 km (Single mode fiber 9/125 µm)
Cable Type
Twisted Pair, Single mode fiber (SM) 9/125 µm
Diagnostic Functions
LEDs (power, link status, data, data rate)
Model
SSL20-1TX/1FX-SM
Mounting Type
DIN rail
Port Configuration
1 × Copper (RJ45) + 1 × Fiber port

Dimensions & Physical Data

Depth
79 mm
Height
102 mm
Weight
100 g
Width
26 mm

Environmental

Storage Temperature
-40 - +70 °C
Operating Temperature
0 - +60 °C
IP Rating
IP30

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, EN61131

Documents

IPD Product Catalogue V17
