  • Hirschmann 942 132-005 Unmanaged DIN Rail Mount Switch 1 x 10/100 Base-TX RJ45 1 x 100 Base-FX -Port 32VDC

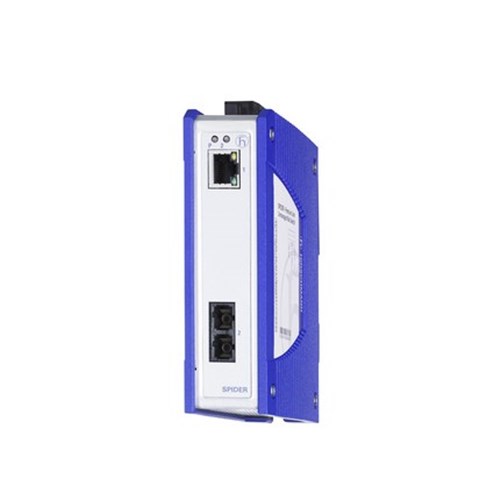

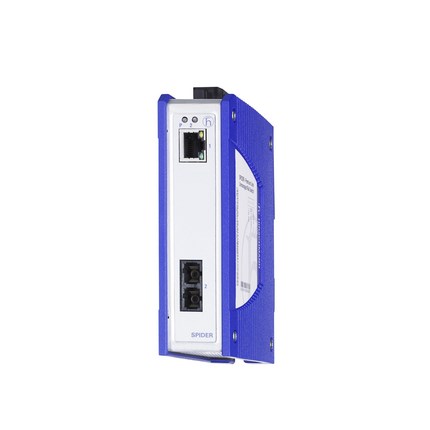

Hirschmann 942 132-005 Unmanaged DIN Rail Mount Switch 1 x 10/100 Base-TX RJ45 1 x 100 Base-FX -Port 32VDC

Product Code: 942 132-005

  • Unmanaged switch for simple networking
  • Compact design with DIN rail/wall mount
  • IP30 protection for indoor use
  • Operates in 0 to 50°C temperature range
  • CE, FCC, EN61131, cUL61010 approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ethernet Switches
Brand
HIRSCHMANN
Series
SPIDER III

Electrical

Operating Voltage
12/24 V DC (9.6 - 32 V DC)
Power Consumption
2.0 W
No. of Ports
2

Mechanical

Cable Length (Supported Range)
0 – 100 m (Twisted Pair ) ,0 - 5000 m (Multimode fiber 50/125 µm), 0 - 4000 m (Multimode fiber 62.5/125 µm)
Cable Type
Twisted Pair, Multimode fiber (MM) 50/125 µm, Multimode fiber (MM) 62.5/125 µm
Diagnostic Functions
LEDs (power, link status, data, data rate)
Model
SSL20-1TX/1FX
Mounting Type
DIN rail
Port Configuration
1 × Copper (RJ45) + 1 × Fiber port

Dimensions & Physical Data

Depth
79 mm
Height
102 mm
Weight
100 g
Width
26 mm

Environmental

Storage Temperature
-40 - +70 °C
Operating Temperature
0 - +60 °C
IP Rating
IP30

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, EN61131
