Specifications

General

Product Type

Auto - Configuration Adapter

Brand

Hirschmann

Series

ACA (Auto-Configuration Adapter)

Electrical

Operating Voltage via the USB interface on the switch	Configuration via USB interface of the switch and via SNMP/Web; saves two different versions of configuration data and operating software from the connected switch	Power Supply via the USB interface on the switch
Interface Type USB 2.0 (USB-A connector)

Mechanical

Diagnostic Functions writing to ACA, reading from ACA, writing/reading not OK (display using LEDs on the switch)	Model ACA22-USB EEC	Mounting plug-in module
Storage Capacity 512 MB

Dimensions & Physical Data

Depth 15mm	Height 29mm	Weight 0.05kg
Width 93mm	Network Cable Length 50 cm

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

-40°C to 70°C

IP Rating

IP20

Communication & Control

USB Port

USB-A connector (USB 2.0)

Safety, Standards & Compliance

Standards and Approvals

Safety of industrial control equipment: cUL 508; Safety of IT equipment: cUL 508; Hazardous locations: ISA 12.12.01 Class 1 Div. 2, ATEX Zone 2; Shipbuilding: DNV; Transportation: EN 50121-4; EMC: EN 55022

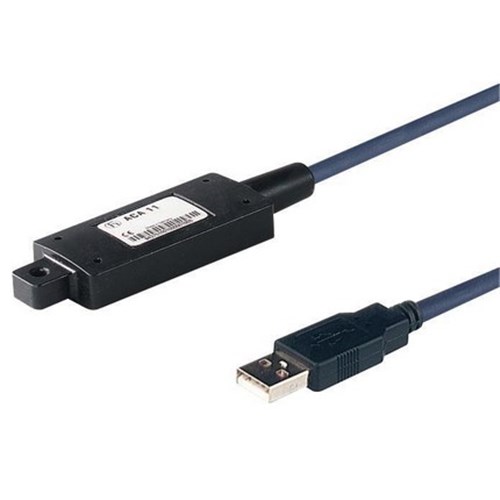

Hirschmann 942 124-001 Auto-Configuration Adapter 512 MB 0.5m L Cable Plug-In Module Mount0

Product Code: 942 124-001
