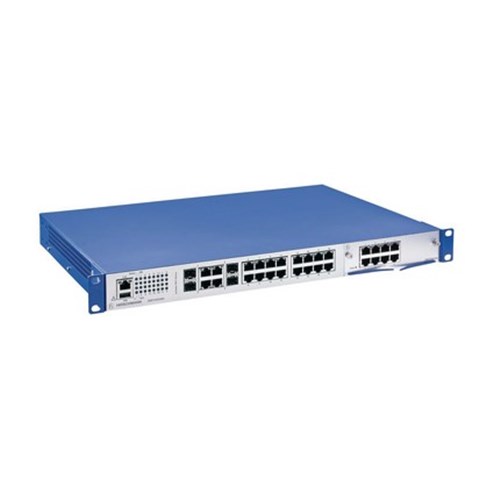

Hirschmann 942 123-204 Managed Rackmount Ethernet Switch Rack Mount 240VAC

Managed Rackmount Ethernet Switch

Hirschmann

GREYHOUND 1020/30

Power Supply 1: power supply 3 pin plug-in terminal block, signal contact 2 pin plug-in terminal block ; Power Supply 2: power supply 3 pin plug-in terminal block

15W

Power Supply 1: 110 - 250 VDC (88V - 288 VDC) and 110 - 240 VAC (88V - 276 VAC) Power Supply 2: 110 - 250 VDC (88V - 288 VDC) and 110 - 240 VAC (88V - 276 VAC)

Rack mount

Ports in total up to 24 x Fast Ethernet Ports, Basic unit: 16 FE ports, expandable with media module with 8 FE ports

315mm

44mm

3.94kg

448mm

-40°C to 70°C

0°C to 60°C

IP30

1 x USB to connect auto-configuration adapter ACA21-USB

CoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), GARP VLAN Registration Protocol (GVRP), GMRP, IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p), Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, Unknown Multicast Filtering, VLAN (802.1Q), VLAN Unaware Mode, Voice VLAN

Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1, v2, v3, Telnet

CE, FCC, EN 61131 EN 60950 IEC 61850, IEEE1613

HiOS 07.1.09
