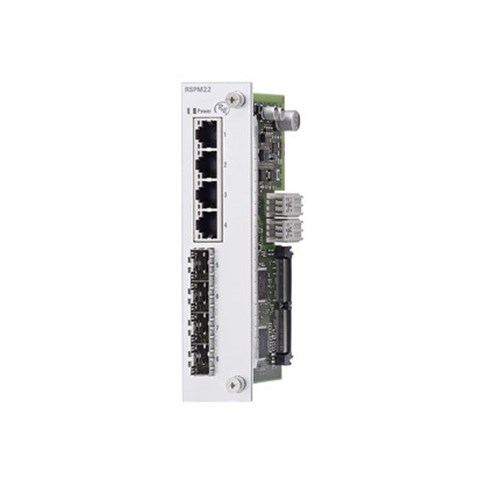

Hirschmann 942 106-999-014 Media Module

Product Code: 942 106-999-014

  • Suitable for harsh environments (-40 to 70°C)
  • Complies with IEC 61850, IEEE 1613 standards
  • Certified for substation and train use
  • Features dual RJ-45 port configurations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Media Module
Brand
Hirschmann

Electrical

Rated Power
4W
Rated Voltage (Ur)
power supply via RSPE32-xx or RSPE37-xx switch variant

Dimensions & Physical Data

Weight
0.14kg

Environmental

Operating Temperature without Derating
-40°C to 70°C
Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 70°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
8 Fast Ethernet ports in total: 8 x RJ45

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, RCM, EN 61131 EN 60950, UL 61010-1/-2-201 ATEX II 3 G Ex na IIC T4 Gc, ISA-12.12.-01 Class 1 Div. 2 Group A, B, C, D IEC 61850-3, IEEE1613 EN 50121-4, NEMA TS2
