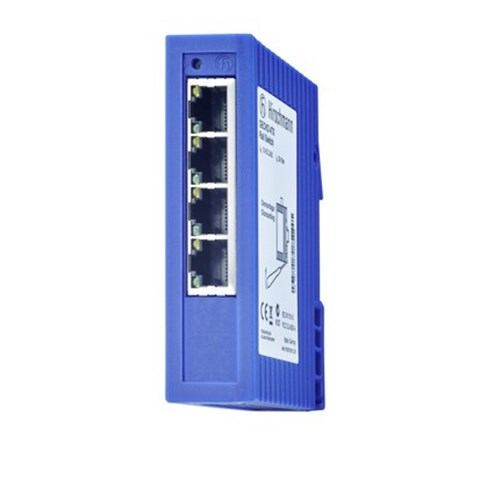

Hirschmann 942 104-003 Lite Managed Switch 9.6-32VDC

Product Code: 942 104-003

  • Managed type for advanced control
  • Wide voltage range: 9.6-32 VDC
  • Compact DIN rail mounting
  • Operates in 0 to 60°C environment
  • Slim design with 25 mm width
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Lite Managed Switch
Brand
Hirschmann
Series
GECKO

Electrical

Input Voltage
9.6V to 32V DC

Mechanical

Mounting
DIN rail

Dimensions & Physical Data

Depth
79mm
Height
114mm
Weight
0.103kg
Width
25mm

Environmental

Operating Temperature
0°C to 60°C
IP Rating
IP30

Communication & Control

Connectors/Input/Output
4 x 10/100BASE-TX, TP-cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity
Total Ports
4
Traffic Management
TOS/DSCP Prioritization, Prioritization through 4 queues, Static unicast/multicast filter entries (up to 100), VLAN Support
Network Management
Web-interface, HTTP(s) config file/firmware transfer, SNMP v1/v2/v3

Safety, Standards & Compliance

Standards and Approvals
cUL 61010-1
