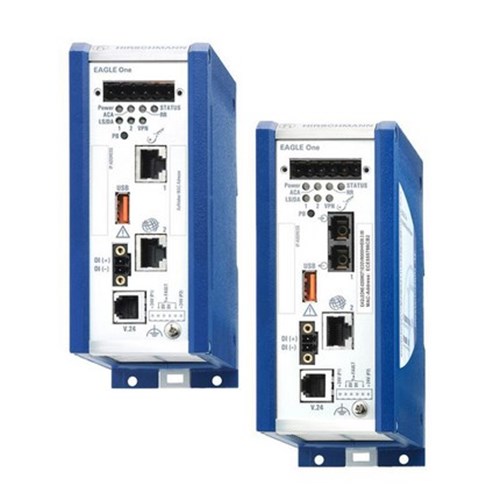

Hirschmann 942 103-999-028 Industrial Firewall/Router 12/24/48VDC -40 to 85 deg C

Product Code: 942 103-999-028

  • Compact size: 60mm width, 145mm height, 125mm depth
  • Supports multiple voltages: 12/24/48 VDC
  • Efficient power usage at only 5W
  • Operates in temperatures from 0 to 60°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Security Router
Brand
Hirschmann
Series
Tofino Xenon

Electrical

Connectors
1 x plug-in terminal block, 6-pin
Rated Voltage (Ur)
12 to 48 V DC, 24 V AC redundant power supply

Mechanical

Mounting
DIN Rail
Port Configuration
2 x 100BASE-TX

Dimensions & Physical Data

Depth
125mm
Height
145mm
Weight
0.66kg
Width
60mm

Environmental

Storage Temperature
-40°C to 70°C
Operating Temperature
0°C to 60°C
IP Rating
IP20

Communication & Control

USB Port
1 x USB socket to connect auto-configuration adapter ACA21-USB or approved USB storage device

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, EN 61131, C-TICK, EN 60950 cUL508 ISA-12.12.-01 Class 1 Div. 2 – Haz. Loc, ATEX-95 Category 3G (Zone 2) GL EN 50121-4 IEC 61850-3, IEEE 1613
