Specifications

General

Product Type

Industrial Security Router

Brand

Hirschmann

Series

Eagle One

Electrical

Connectors 1 x plug-in terminal block, 2-pin	Communication Protocols SNMPv3, SSH2/SFTP, HTTPS, V.24 CLI, SSH1 and SNMPv1/2	Rated Power 5W
Rated Voltage (Ur) 12 to 48 V DC, 24 V AC redundant power supply

Mechanical

Mounting

DIN Rail

Port Configuration

2 x FE

Dimensions & Physical Data

Depth 125mm	Height 145mm	Weight 0.66kg
Width 60mm

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

0°C to 60°C

IP Rating

IP20

Communication & Control

USB Port

1 x USB socket to connect auto-configuration adapter ACA21-USB

Safety, Standards & Compliance

Standards and Approvals

CE, FCC, EN 61131, C-TICK, EN 60950 cUL508 (pending, dependent on device variant) ISA-12.12.-01 Class 1 Div. 2 – Haz. Loc, ATEX-95 Category 3G (Zone 2), (pending, dependent on device variant) EN 50121-4 (dependent on device variant) IEC 61850-3, IEEE 1613 (dependent on device variant)

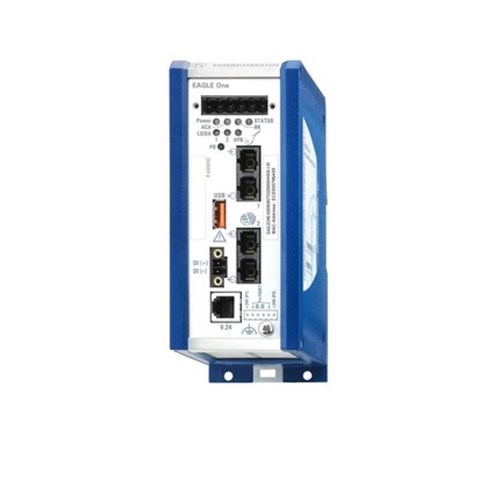

Hirschmann 942 103-001 Firewall & Security Router 2xFE (10/100 Mbps) 2xTwisted Pair RJ45

Product Code: 942 103-001
