Specifications

Product Type

Managed Ethernet Switch

Brand

Hirschmann

Series

RSPS

Input Voltage

2 x 24/36/48V DC (18 -60V DC)

Mounting

DIN rail

Depth 120mm	Height 164mm	Weight 1.18kg
Width 90mm

Operating Temperature

0°C to 60°C

IP Rating

IP20

Connectors/Input/Output 6 x Twisted Pair / RJ45 (10/100 Mbit/s)	Total Ports 6	Traffic Management CoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p), Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, Unknown Multicast Filtering, VLAN (802.1Q), VLAN Unaware Mode, Voice VLAN
Network Management TFTP, SFTP. SCP. LLDP (802.1AB), LLDP-MED, SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet

Standards and Approvals

CE, FCC, EN 61131

Development Software

HiOS 07.1.08

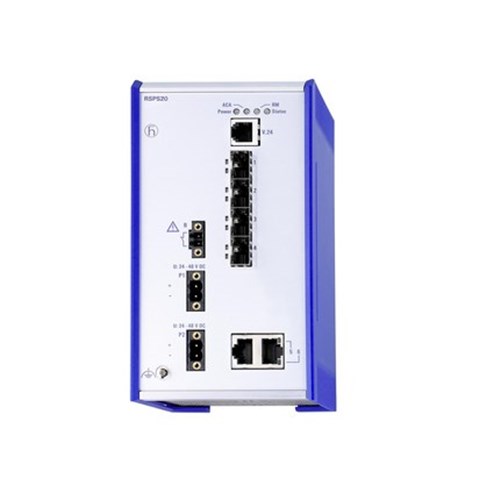

Hirschmann 942 094-999-003 Managed DIN Rail Switch
